Cane Creek 110 Series Headset Bottom - Blue

EXTRA 15% OFF THIS PRODUCT.

Discount Auto Applied at Checkout
Shop All
Color
Size
Option

Product ID: GM081920-25

Earn rewards points on this item / Learn More

Only 1 Left - Ready to ship



Shop all Cane Creek   |   Shop all MTB/Road Headsets


  • Hassle free
    365 Day Returns
  • Safe and Secure
    for peace of mind
  • Pay by Card, PayPal, Apple Pay & Google Pay

keyboard_arrow_right Description

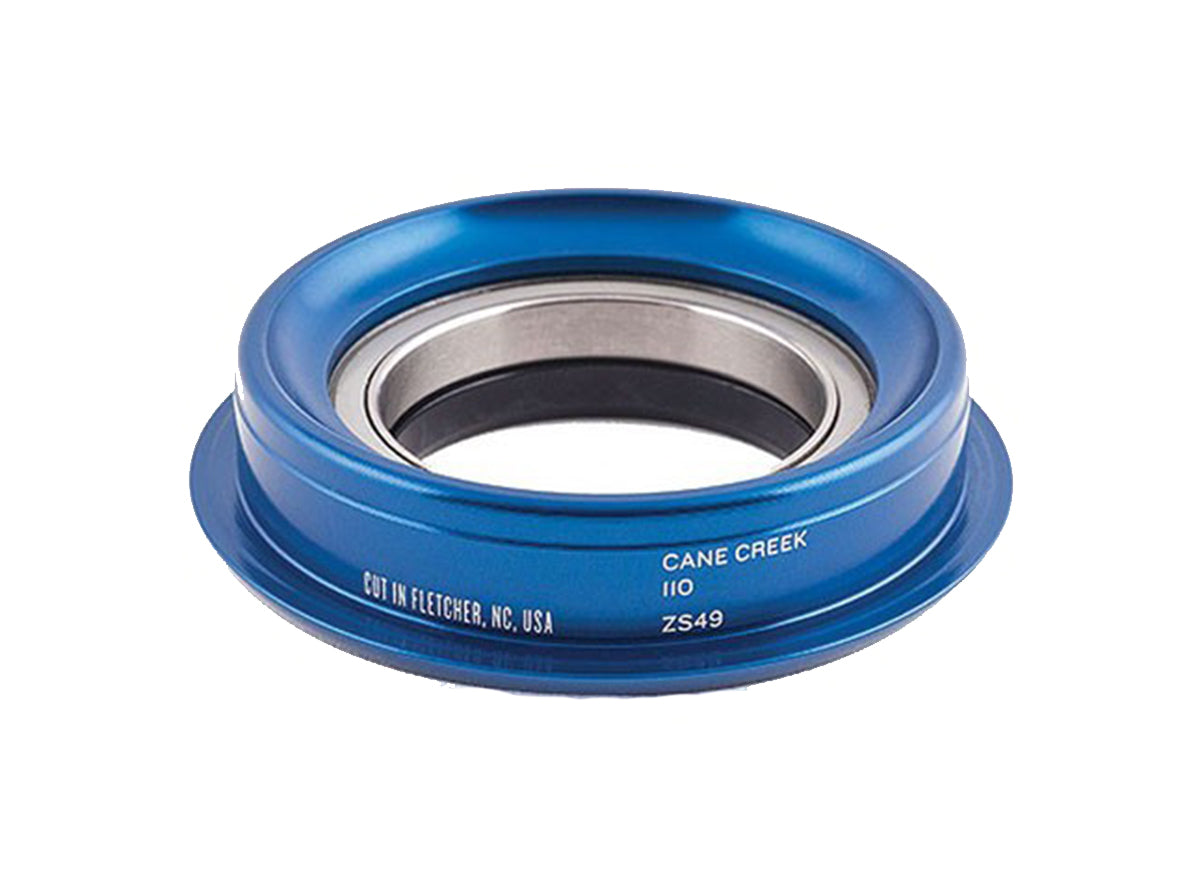

Cane Creek 110 Series Headset Bottom

Cane Creek’s engineers were tasked with developing a no-compromise, best-in-class premium headset. With the introduction of our 110-Series, they did just that — choosing optimal materials, engineering the most effective internals and designing the best aesthetics available in a headset.

The 110-Series offers the widest array of configurations available in a premium headset. With the flexibility to purchase complete assemblies or separate Tops and Bottoms, tops are available in either short (9mm) or tall (15mm) stack height bearing covers, the 110-Series offers a premium solution for nearly all straight and tapered configurations on the market today. From Integrated (IS) Tops to External Cup (EC) Conversion Bottoms and everything in between, you can mix and match your headset purchase to best meet your needs.

keyboard_arrow_right Features

  • Cups and Covers – 7075 T-6 Aluminum, Internally contoured and relieved to minimize weight and maximise strength
  • Covers – Low-Friction upper bearing seal completely seals cup from contaminants and is fully captured by the top cover with no loose parts
  • Crown Race – Dual-Seal crown race provides excellent seal efficiency with low friction
  • Bearings – Premium Sealed stainless steel HellBender bearings
    • EC34 – 41mm bearing
    • ZS44 – 41mm bearing
    • ZS49 – 41mm bearing
    • EC44/40 – 52mm bearing
    • EC44/33 – 47mm bearing
    • EC49 – 52mm bearing
    • ZS56 – 52mm bearing
    • IS41 – 41mm bearing
    • IS42 – 42mm bearing
    • IS52 – 52mm bearing
  • **All complete Cane Creek headset assemblies (top or bottom) will use a 36x45 degree contact angle bearing, with the exception of IS47/33 and EC44/33 headset assemblies. IS47/33 and EC44/33 will use a 45x45 degree contact angle bearing
  • Interlok – Interlok Spacer Compatible
  • Warranty – 100% Lifetime Guarantee – Including Bearings
  • Stack Heights
    • External Cup (EC) – 16mm Top, 12mm Bottom
    • ZeroStack (ZS) – 8mm or 15mm Top, 4mm Bottom
    • Integrated (IS) – 9mm or 15mm Top, 1mm Bottom
