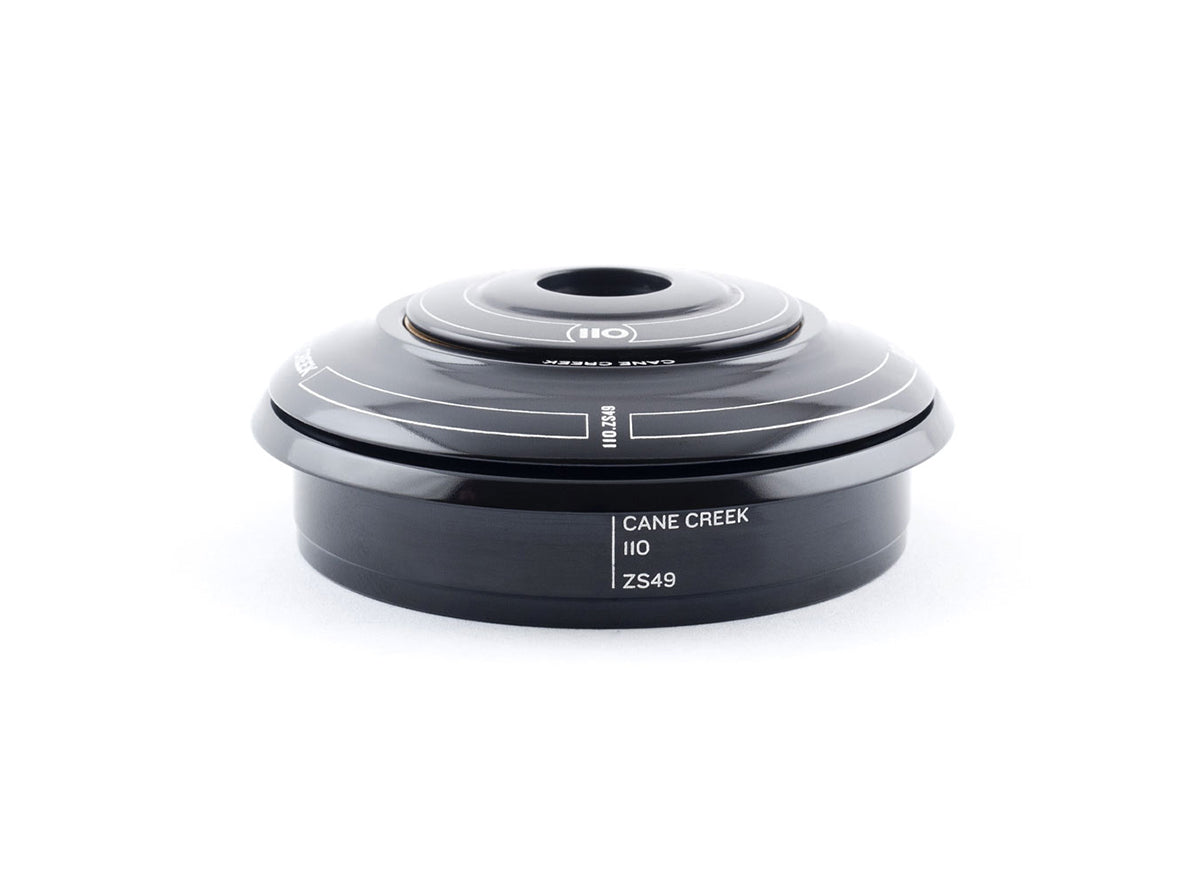

Cane Creek 110 Series Headset Top

Cane Creek’s engineers were tasked with developing a no-compromise, best-in-class premium headset. With the introduction of our 110-Series, they did just that — choosing optimal materials, engineering the most effective internals and designing the best aesthetics available in a headset.

The 110-Series offers the widest array of configurations available in a premium headset. With the flexibility to purchase complete assemblies or separate Tops and Bottoms, tops are available in either short (9mm) or tall (15mm) stack height bearing covers, the 110-Series offers a premium solution for nearly all straight and tapered configurations on the market today. From Integrated (IS) Tops to External Cup (EC) Conversion Bottoms and everything in between, you can mix and match your headset purchase to best meet your needs.

Cups and Covers	7075 T-6 Aluminum, Internally contoured and relieved to minimize weight and maximize strength
Covers	Low-friction upper bearing seal completely seals cup from contaminants and is fully captured by the top cover with no loose parts
Crown Race	Dual-Seal crown race provides excellent seal efﬁciency with low friction
Bearings	Premium, sealed stainless-steel HELLBENDER bearings EC34 will take a 41mm bearing ZS44 will take a 41mm bearing ZS49 will take a 41mm bearing EC44/40 will take a 52mm bearing EC44/33 will take a 47mm bearing EC49 will take a 52mm bearing ZS56 will take a 52mm bearing IS41 will take a 41mm bearing IS42 will take a 42mm bearing IS52 will take a 52mm bearing All complete Cane Creek headset assemblies (top or bottom) will use a 36x45 degree contact angle bearing, with the exception of our IS47/33 and EC44/33 headset assemblies. IS47/33 and EC44/33 will use a 45x45 degree contact angle bearing.
Interlok®	Interlok® spacer compatible

Warranty	100% Lifetime Guarantee - Including bearings
Stack Heights	External Cup (EC) — 16mm top, 12mm bottom ZeroStack (ZS) — 8mm or 15mm top, 4mm bottom Integrated (IS) — 9mm or 15mm top, 1mm bottom
