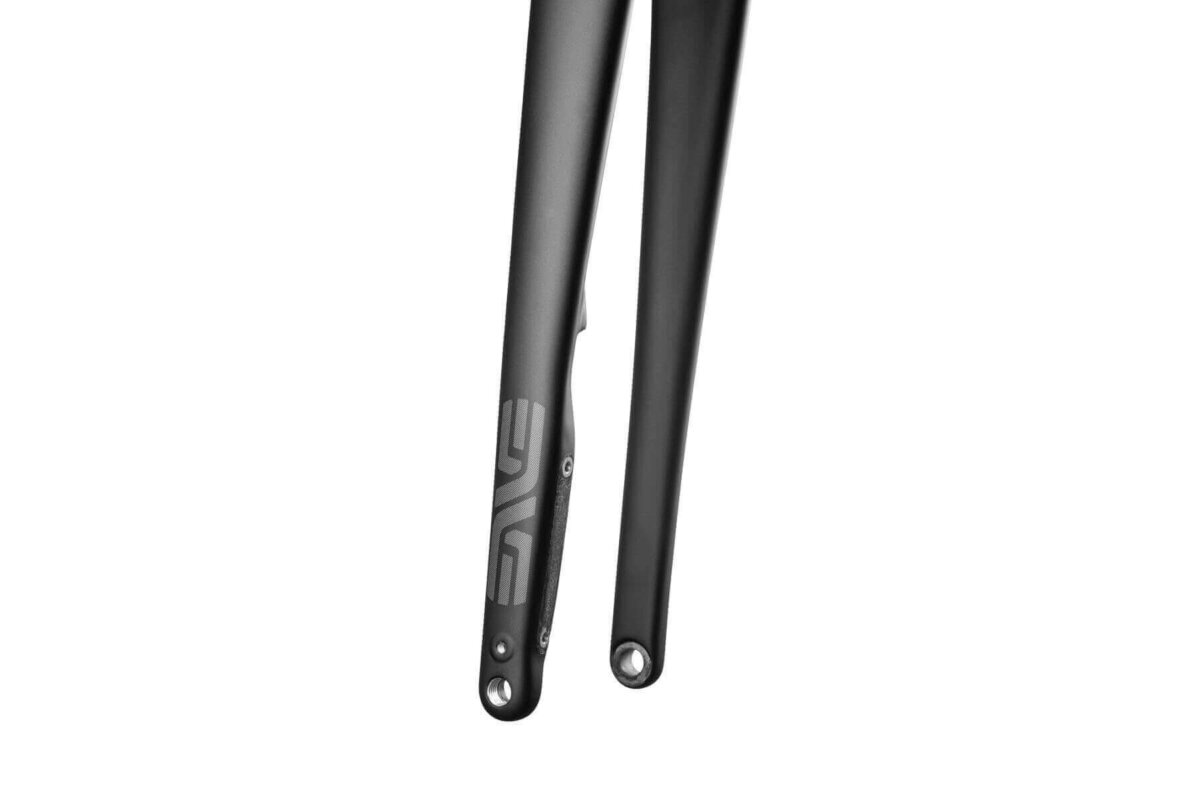

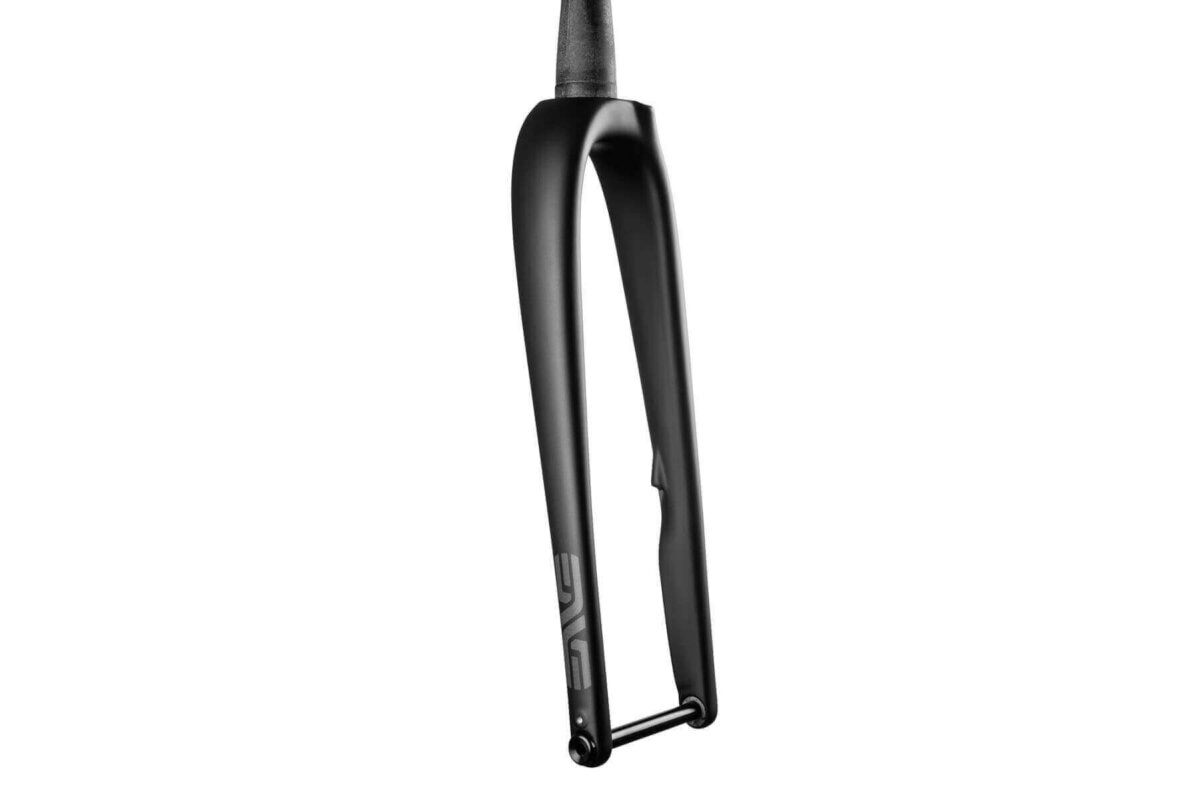

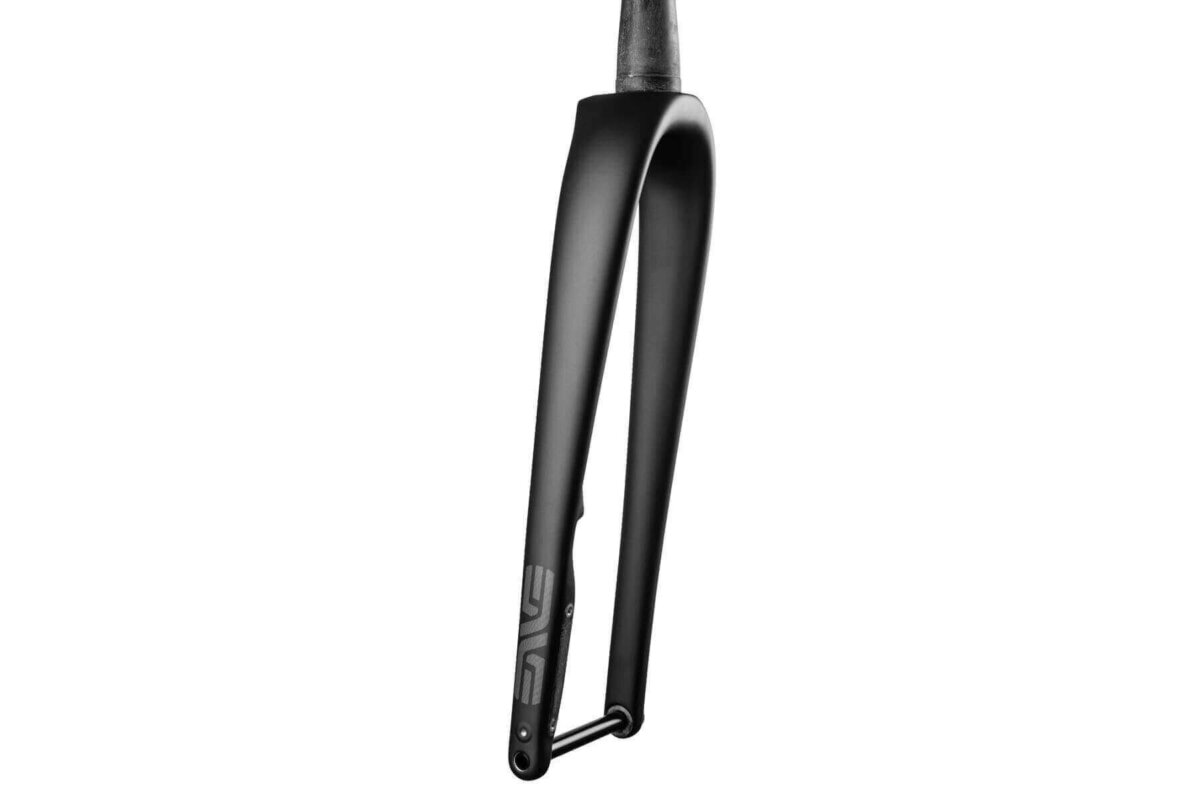

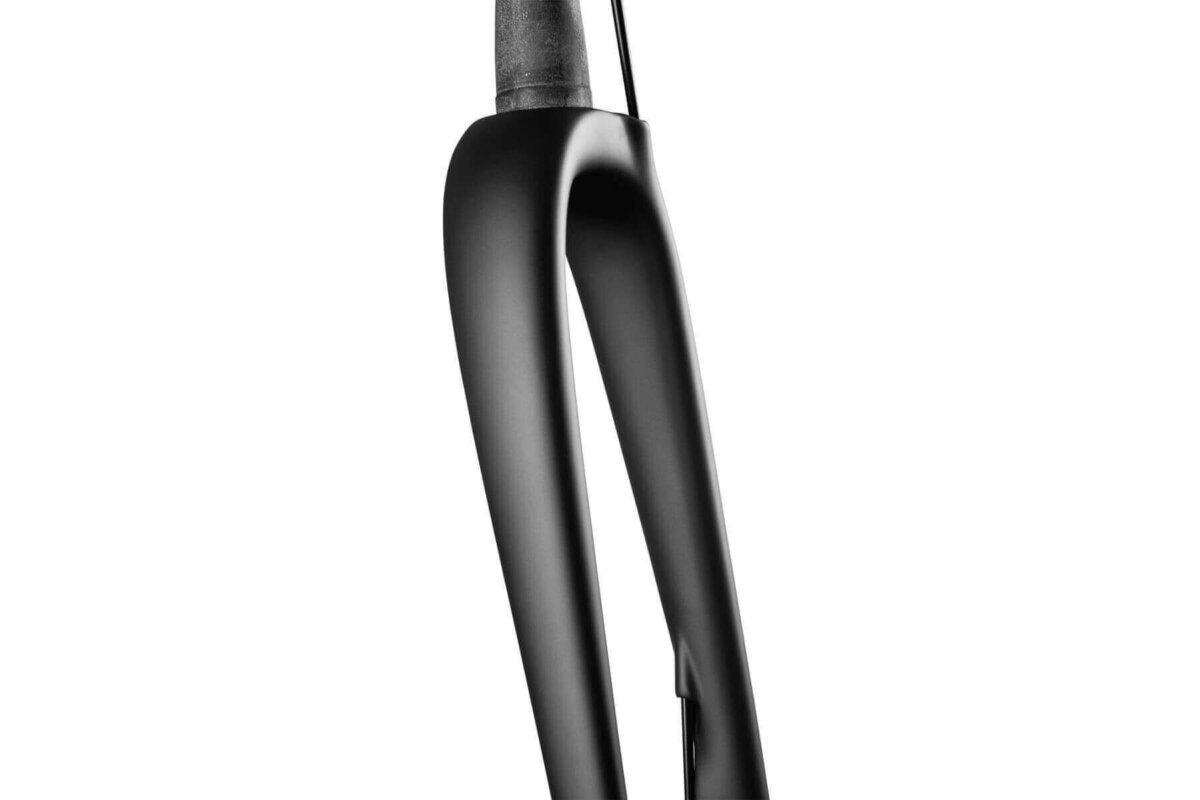

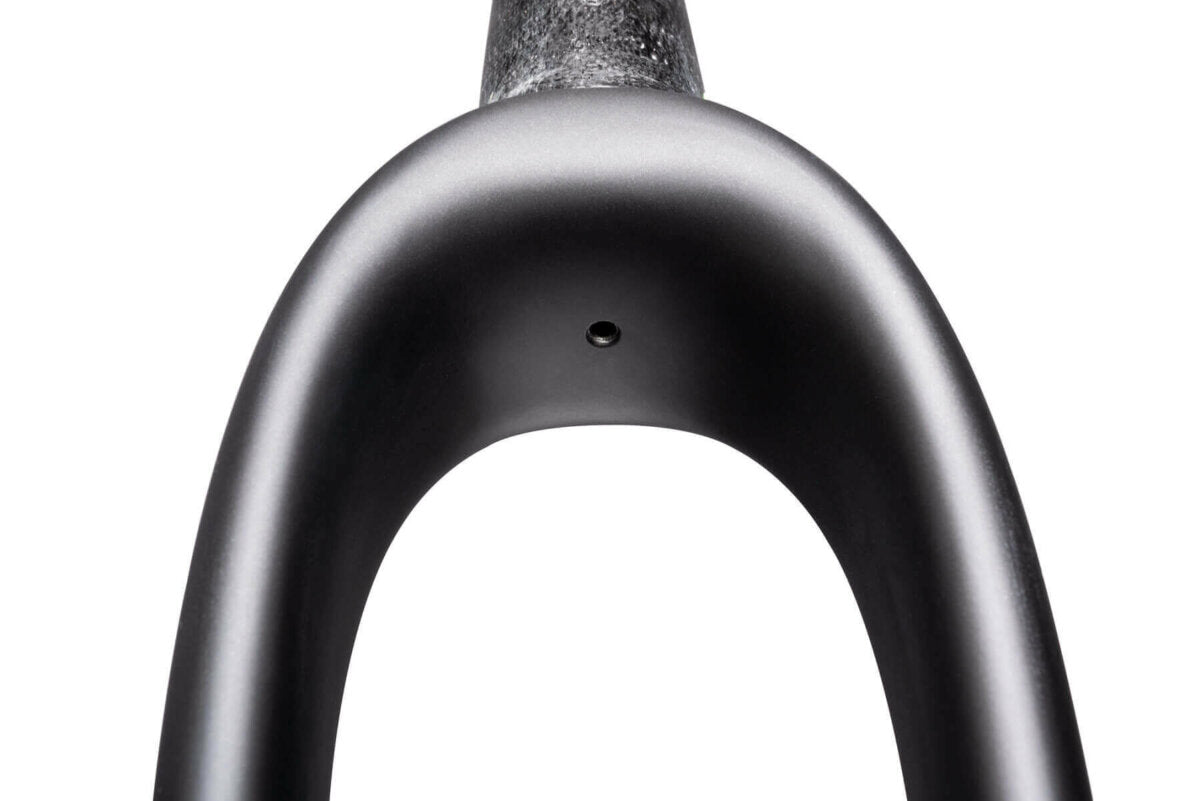

ENVE Disc Brake Carbon Gravel Fork

A purpose built carbon fiber fork for gravel and cyclocross bikes featuring internal hose routing, flat mount brake compatibility and clearance for up to 50mm tires.

As gravel riders and partners of the custom frame builder community, we were able to identify the technical improvements needed in a full-carbon gravel fork to meet the needs of the modern gravel rider and the bicycle frames they are riding. As the industry’s leading fork manufacturers, we deliver a new gravel standard for compliance, weight savings, strength, and reliability for demanding rides over any surface.

Gravel riders looking for more clearance, weight savings, compliance and the versatility of fender mounts will enhance their gravel grinding experience with this fork.

SPECIFICATION:

• Material Carbon
• Weight 520g
• Steer Tube Length 350mm
• Rake 47mm & 50mm
• Axle To Crown 395mm
• Brake Disc
• Axle Compatibility 12mm Thru
• Max Rotor Size 140mm – 160mm
• Max Tire Clearance 700c x 50c, 27.5″ x 2.25″
• Crown Race Diameter 1.5″
• Torque Spec – Steer Tube 5.5nm
• Torque Spec – Axle 8nm
