Fox Suspension 36 Float 150 Factory 29 Kabolt X 110 - Orange - 2026

Gravity-Focused Precision for All-Mountain Mayhem

Designed for riders who thrive on the steepest descents and rowdiest trails, the Fox 36 Float 150 Factory with GRIP X2 damper is built to push the limits. Featuring the most tunable and supportive damper FOX has ever created, this fork offers a planted, composed ride feel that keeps you higher in the travel, improves traction, and reduces fatigue on extended runs.

With updates across the chassis—including a generatively engineered arch, increased bushing overlap, and a compliant FLOAT EVOL air spring—the 2026 model is smoother, stiffer, and more responsive than ever. Finished with the ultra-durable Kashima Coat and a lightweight Kabolt X axle, the 36 Factory sets the benchmark for aggressive all-mountain suspension.

Key Features

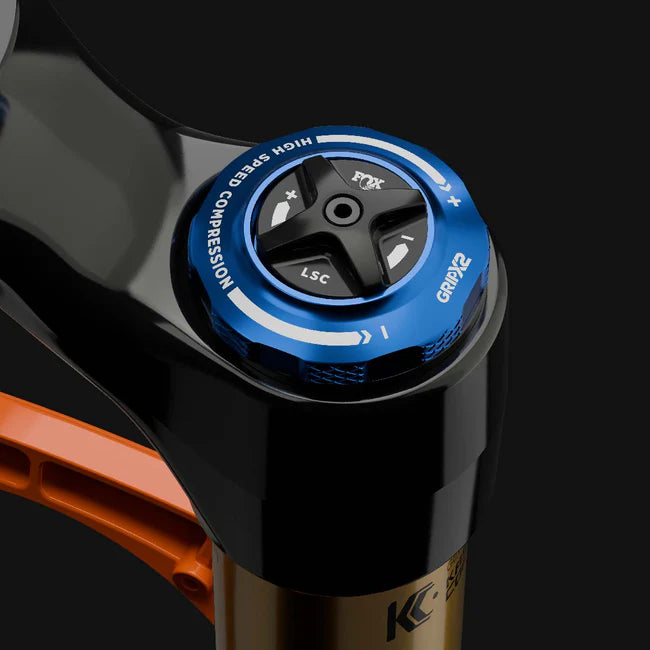

• GRIP X2 Damper: FOX’s most advanced descent-focused damper provides independent high- and low-speed compression and rebound adjustability for unmatched traction and control.

• FLOAT EVOL Air Spring: Redesigned for more compliance under load and better small-bump sensitivity.

• Updated Chassis: 20% increase in torsional stiffness thanks to a new arch shape and 30mm longer bushing overlap improves support and reduces friction.

• Kabolt X Axle: Lightweight, tool-free design increases torsional stiffness while reducing weight.

• Sleek Bleeders: Low-profile, easy-to-operate pressure relief valves for consistent performance on big elevation days.

• Air Volume Tuning: New air spring top cap is cassette tool-compatible for effortless tuning.

• Factory Series Finish: Kashima-coated stanchions for unmatched durability and buttery smooth performance.

Specifications

• Travel: 150mm

• Wheel Size: 29"

• Axle: 15x110mm Boost (Kabolt X)

• Offset: 44mm

• Damper: GRIP X2 – High/Low-Speed Compression & Rebound

• Spring: FLOAT EVOL Air

• Stanchions: 36mm, Kashima-coated

• Axle to Crown: 576mm

• Max Tire Width: 66mm

• Brake Mount: Post Mount 200

• Color: Shiny Orange

• Steerer: Tapered, 264mm

• Steerer Clamp Diameter: 28.6mm

The fork for riders who don’t compromise. With its unmatched descent performance and refined stiffness-to-weight ratio, the 36 Float Factory GRIP X2 is built to thrive on the gnarliest terrain, day in and day out.
