Ibis Mojo V4: The Ultimate All-Mountain Magic

Overview: The Ibis Mojo V4 is the epitome of versatility and performance in the all-mountain category. Since its debut in 1994, the Mojo has combined exhilarating fun with serious mountain capability. The Mojo V4 continues this legacy with advanced features and a refined design that appeals to riders seeking both climbing efficiency and downhill prowess.

Key Features:

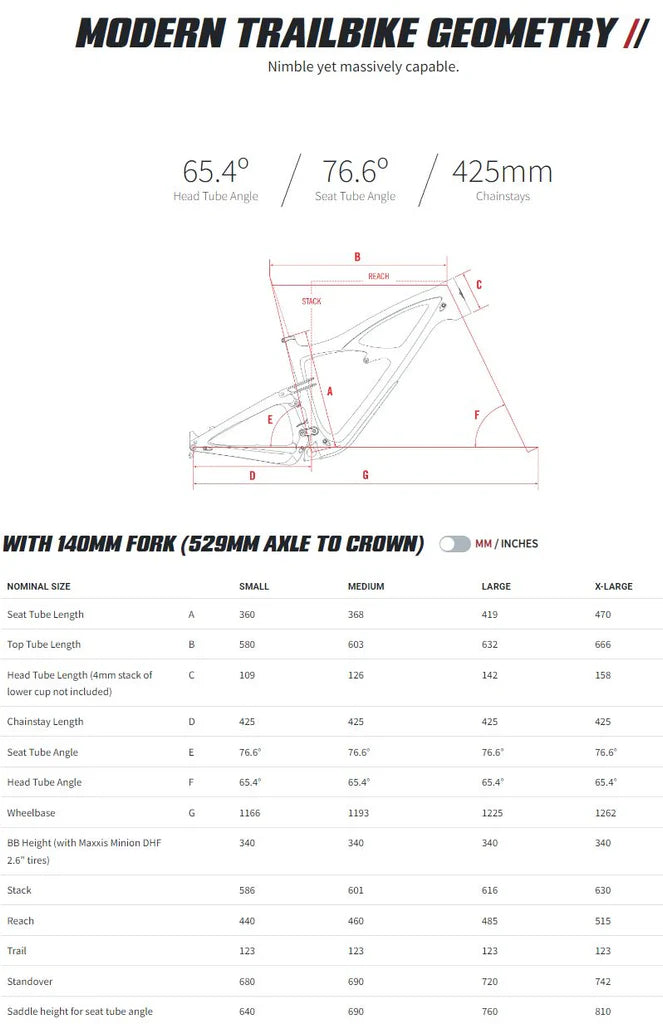

• Geometry:

  • Seat Tube Angle: 76.6° for efficient climbing.
  • Head Tube Angle: 65.4° for stable handling on descents.
  • Chainstays: Shortest in its class for agile maneuverability.
  • Reach: Spacious, optimizing fit and comfort.
  • Wheel Size: 27.5" wheels for a balanced feel and confidence on trails.

• DW-LINK Suspension:

  • Design: Developed with Dave Weagle, offering a perfect blend of climbing efficiency and downhill performance.
  • Proven Performance: Consistently successful in high-level racing environments.

• Traction Tune:

  • Suspension: Custom-tuned with extra-light high-speed compression and rebound damping.
  • Benefit: Provides superior traction while maintaining excellent pedaling efficiency.

• Size Options:

  • Dropper Post Compatibility: All sizes accommodate long dropper posts, with options up to 185mm.
  • Standover Height: Low for easy mounting and dismounting.
  • Water Bottle and Accessory Mounts: Designed to fit a water bottle and an aftermarket Pork Chop bag.

• Fork Offset:

  • Offset: 37mm for increased stability and control at various speeds.
  • Design Purpose: Enhances performance in technical and demanding terrain.

• Tire Clearance:

  • Capacity: Fits 27.5"x2.6" tires.
  • Versatility: Accommodates both chunky and fast-rolling tires.

• Bushings:

  • Material: IGUS bushings in the lower link for lightweight and stiffness.
  • Maintenance: Virtually maintenance-free with a lifetime replacement guarantee.

• Lightweight Carbon Frame:

  • Material: Premium-grade carbon optimized for strength, weight, and ride performance.
  • Weight: Frame weighs 5.9 lbs; complete builds start at 26.7 lbs.

• Internal Cable Routing:

  • Design: Carbon fiber tubes molded into the frame for a clean look and easy cable management.

• Removable ISCG Mount:

  • Flexibility: Can be removed if not needed, providing a clean frame appearance.

• Frame Protection:

  • Down Tube: Polycarbonate protector against debris.
  • Swing Arm: Molded rubber protectors for quiet and clean operation.
  • Linkage: Simple yet effective linkage protectors to keep mud and rocks at bay.

Specifications:

• Frame:

  • Model: Ibis Mojo V4
  • Color: Blue Dream
  • Year: 2022

• Suspension:

  • Rear Shock: Fox Float DPS Performance Series 210x50 or Fox Float Factory Series DPS with EVOL 210x150

• Fork:

  • Model: Rock Shox Pike Ultimate RC2
  • Travel: 140mm
  • Offset: 37mm
  • Axle: 15mm, 110mm Boost
  • Wheel Diameter: 27.5"

• Wheels:

  • Front Hub: Ibis Logo, 32H, 15mm through axle
  • Rear Hub: Ibis Logo Microspline, 32H, 12mm through axle, 148mm spacing
  • Rims: Ibis Send 1 (Front), Ibis Send 2 (Rear)
  • Tires: Maxxis Minion DHF 27.5 x 2.5WT 3C MaxTerra EXO TR (Front and Rear)

• Brakes:

  • Model: Shimano SLX BL-M7100/BR-M7120
  • Rotors: Shimano SM-RT66, 180mm

• Drivetrain:

  • Shifters: Shimano SLX SL-M7100 12sp
  • Crankset: Shimano SLX FC-M7100, 30T
  • Bottom Bracket: Shimano SM-BB52
  • Chain: Shimano SLX CN-M7100 12sp
  • Cassette: Shimano SLX CS-M7100, 10-51T
  • Rear Derailleur: Shimano SLX M7100 Shadow Plus

• Components:

  • Stem: Ibis BFD Black, 31.8mm clamp
  • Handlebar: Ibis 780mm Alloy, 15mm rise
  • Seatpost: Bike Yoke Revive Dropper, Internal routing
  • Saddle: WTB Volt Medium Cromoly
  • Grips: Lizard Skin Charger Black with Ibis Logo clamps
  • Pedals: Not Included

Conclusion: The Ibis Mojo V4 is a high-performance all-mountain bike designed for those who demand both climbing efficiency and downhill capability. With its advanced DW-LINK suspension, versatile geometry, and premium carbon construction, it’s built to handle a variety of trail conditions while offering a magical riding experience. Whether you’re tackling technical descents or climbing steep trails, the Mojo V4 is engineered to deliver confidence and control.
