Ibis Ripley AF 29 - SLX/AL Wheels - Protein Shake

Bread Logo

Product ID: GM010924-22

Earn rewards points on this item / Learn More

Only 1 Left - Ready to ship


Shop all Ibis   |   Shop all Full Suspension

  • Hassle free
    365 Day Returns
  • Safe and Secure
    for peace of mind
  • Pay by Card, PayPal, Apple Pay & Google Pay

keyboard_arrow_right Description

The Ripley AF is our beloved, category-defying, short-travel, singletrack-scorching Ripley - rendered in aluminum, with more aggressive geometry.

All the sizzle and pop of the carbon Ripley, now available as a complete bike at a wallet friendly price.

  • Fox Performance Float 34 130mm travel fork
  • Fox Performance Float DPS shock
  • Shimano SLX 12-Speed drive
  • Blackbird Send Alloy wheelset
  • Bike Yoke Revive dropper post

A trail-friend­ly 65.5‑degree head angle and short (44mm) off­set 130mm fork com­bined with 29” wheels makes for a super plant­ed but still play­ful front end feel. A 76-degree seat angle puts your pow­er direct­ly to the ped­als, while the short chain­stays and ped­al-friend­ly dw-link kine­mat­ics deliv­er that pow­er with­out squan­der­ing a sin­gle watt.

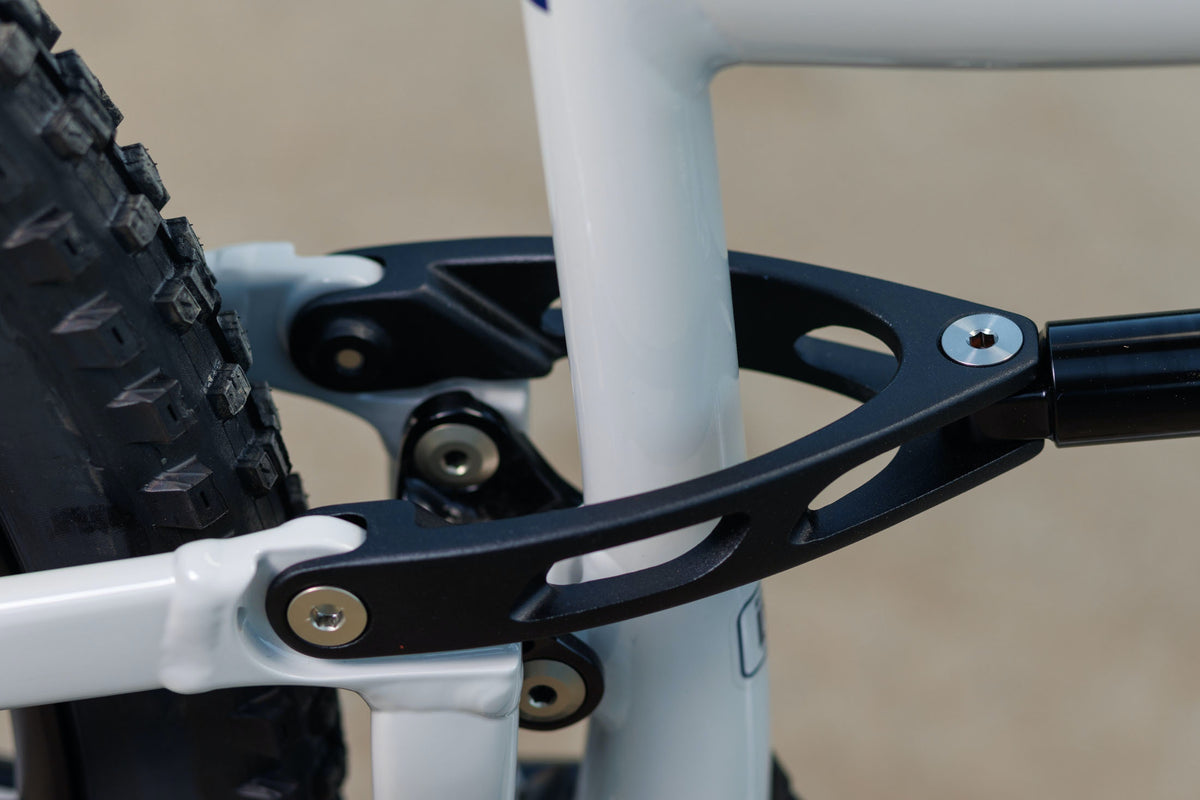

Our 15-year col­lab­o­ra­tion with Dave Wea­gle has yield­ed yet anoth­er bike with unpar­al­leled climb­ing effi­cien­cy and tractabil­i­ty. Incred­i­ble snap and respon­sive­ness are its trade­marks, and a whole mess of plush, chun­der-eat­ing, down­hill-crush­ing good­ness gets thrown in for good mea­sure. Wrap that togeth­er and you get the best sus­pen­sion you’ll find any­where. It’s that good.

The Rip­ley AF frame is designed with clear­ance for long drop­pers in mind.

We use words like small, medi­um, and large to describe our siz­ing because it’s easy to under­stand, but our ultra low stan­dovers give you the abil­i­ty to size your frame based on reach and preference.

We pio­neered the wide rim rev­o­lu­tion a few years ago and inspired a new crop of wider 2.4” — 2.6” tires. When paired togeth­er, this com­bo can be run at ultra-low pres­sures that pro­duce elbow-drag­ging cor­ner­ing trac­tion with­out sac­ri­fic­ing speed.

There if you want it, remov­able if you don’t.

If it’s our fault, we’ll fix it. Sim­ple as that.


  • Frame Model: Ibis Ripley AF w/Ibis Hanger
  • Frame Size: X-Large
  • Frame Color: Protein Shake
  • Frame Year: 2023
  • Rear Shock: 2023_21, FLOAT DPS, P-S, A, 3pos, Evol LV, Ibis, Ripley 4 LG-XL, 190, 45, 0.6 Spacer, LCL, LRM, CMF, Standard Logo
  • Headset Cane Creek 40 Series ZS44/28.6 - ZS56/40 - Tapered, Steerer Diameter:1.5
  • Spacers (yes/no / xxmm): yes( 5 x 5mm)
  • Fork Model: 2024_23, 34, A, FLOAT, 29in, P-S, 130, Grip, 3Pos, Light Reb, Matte Blk, PMS 428 Chalk/PMS 281 Royal Logo, Kabolt 110, BLK, 1.5 T, 44mm Rake, N/M OE
  • Fork Travel: 130mm
  • Front Axle: 15mm
  • Front Axle Spacing: 110mm Boost
  • Front Wheel Diameter: 29"
  • Front Hub: Ibis Logo Black
  • Spoke Holes: 32
  • Front Spokes: Sapim D-Light J-bend Black
  • Front Nipples: Sapim double square nipple Black
  • Front Rim: Ibis BlackBird Send 1 Aluminum Black
  • Front Tire: Maxxis Minion DHR II 3C MaxTerra EXO TR 29 x 2.4WT
  • Front Tube: Tubeless
  • Front Brake Model: Shimano XT BL-M8100/BR-M8120 Black
  • Disc Rotor Interface: 6-Bolt
  • Disc Rotor Model: Shimano SM-RT66
  • Disc Rotor Diameter: 180mm
  • Stem Model: Ibis Aluminum
  • Stem Length: 50mm
  • Stem Steer Tube Diameter: 1 1/8"
  • Stem Bar Clamp Diameter: 31.8mm
  • Handlebar: Ibis 800mm Carbon Hi Fi Bar
  • Shifters: Shimano XT SL-M8100 12 Speed
  • Brake Levers: Shimano XT BL-M8100
  • Grips: Lizard Skins Charger Lock-on Black with Ibis clamps Black
  • Brake Cables: Shimano Hydraulic
  • Shift Cables: Shimano
  • Seatpost Bike Yoke: 31.6 x 213mm
  • Dropper Routing: Internal
  • Saddle: WTB Silverado Medium CrMo
  • Front Derailleur: Not included
  • Bottom Bracket: Shimano SM-BB52
  • Crankset: Shimano SLX FC-M7120 175mm
  • Chainrings: Shimano SLX 30T 12 Speed
  • Pedals: Not Included
  • Chain: KMC X12
  • Cassette: Shimano SLX CS-M7100 10-51T 12 Speed
  • Rear Derailleur: Shimano SLX RD-M7100 SGS 12 Speed
  • Derailleur Mount Type: Ibis Hanger
  • Rear Axle: 12mm through axle
  • Rear Axle Spacing: 148mm
  • Rear Wheel Diameter: 29"
  • Rear Hub: Ibis Logo with Shimano Microspline freehub
  • Spoke Holes: 32
  • Rear Spokes: Sapim D-Light J-bend Black
  • Rear Nipples: Sapim double square nipple Black
  • Rear Rim: Ibis BlackBird Send 2 Aluminum Black
  • Rear Tire: Maxxis Dissector EXO TR 29 x 2.4WT
  • Rear Tube: Tubeless
  • Rear Brake Model: Shimano XT BL-M8100/BR-M8120 Black
  • Disc Rotor Interface: 6-Bolt
  • Disc Rotor Model: Shimano SM-RT66
  • Disc Rotor Diameter: 180mm
  • Extras Included: Stans Sealant
