Ibis Ripmo V2: The Evolution of a Legend

Overview: Ibis took the widely adored Ripmo and refined it even further in the V2, introducing slacker geometry, a longer reach, and increased progressiveness, all while maintaining its legendary versatility. This version not only boasts coil shock compatibility but also enhances the suspension tuning for unmatched traction and control on any terrain.

Key Features:

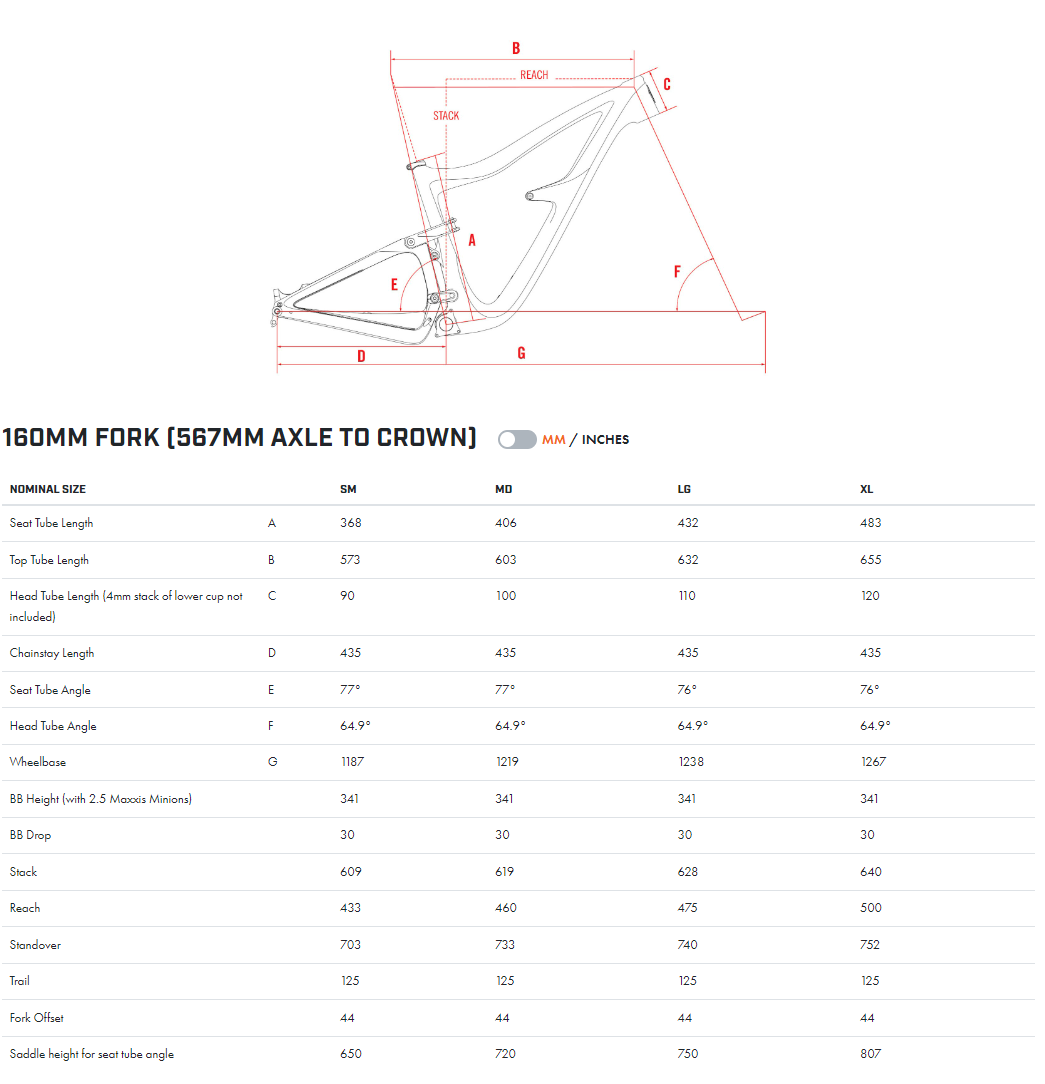

• Geometry:

  • Seat Tube Angle: With a steep 76° seat tube angle, the Ripmo V2 positions the rider centrally over the pedals, optimizing efficiency for long climbs and extended rides.
  • Head Tube Angle: A slack 64.9° angle combined with a 44mm reduced-offset fork offers a stable and confident ride on descents without sacrificing precision on climbs.
  • Reach: Balanced reach ensures comfort on long rides while providing the control needed for aggressive trail riding.

• Traction Tune:

  • Suspension Tuning: Ibis has fine-tuned the suspension with extra light, high-speed compression, and rebound damping, allowing the wheels to maintain traction and momentum over rough terrain.

• Coil Compatibility:

  • Progressive Suspension: The Ripmo V2’s more progressive leverage rate allows compatibility with both coil and air shocks, providing a supple suspension feel throughout the stroke for enhanced traction and control.

• Dropper Post Clearance:

  • Versatility: Small frames support 125mm to 150mm droppers, while medium, large, and extra-large frames can accommodate up to 185mm. The shorter seat tube and low standover heights allow riders to choose their size based on reach preference.

• Tire Clearance:

  • Flexibility: The frame supports a wide range of tire profiles, from chunky, overbuilt tires for rugged terrain to lighter, fast-rolling options, ensuring you’re not limited by tire width.

• Bushings:

  • Durability: Ibis uses IGUS bushings in the lower link, which are lighter, stiffer, and virtually maintenance-free, backed by a lifetime replacement guarantee. Bearings are used where necessary to ensure longevity.

• Premium Carbon Construction:

  • Material: The Ripmo V2 is constructed from top-grade carbon fiber, optimized for strength, weight, and stiffness. Despite its robustness, the frame weighs only 6.25 lbs with a DPX2 shock, and complete builds start at 28 lbs.

• Internal Cable Routing:

  • Aesthetics and Functionality: Carbon fiber tubes molded within the frame allow for clean, hassle-free cable routing, ensuring a sleek appearance without compromising performance.

• Removable ISCG Mount:

  • Customization: The ISCG tabs can be removed for those who prioritize weight savings or added for riders needing extra chain retention.

• Protection Features:

  • Frame Protection: A polycarbonate downtube protector shields against debris, while molded rubber swing arm protectors reduce noise and maintain cleanliness. Linkage protectors prevent mud and rocks from damaging the bike’s moving parts.

Specifications:

• Frame:

  • Model: Ibis Ripmo V2 (Ibis Hanger)
  • Size: Large
  • Color: Star Destroyer Grey
  • Year: 2022

• Suspension:

  • Rear Shock: Fox Float Factory Series, X2 with EVOL, 210 x 55
  • Fork: Fox Factory Series, Float 38, GRIP2, 160mm, 44mm offset, 29”, 110x15mm

• Wheels:

  • Front Hub: Ibis Logo, 32H, 15mm through axle
  • Rear Hub: Ibis Logo Microspline, 32H, 12mm through axle, 148mm spacing
  • Rims: Ibis Blackbird Send 1 (Front), Ibis Blackbird Send 2 (Rear)
  • Tires: Maxxis Assegai 29 x 2.5WT 3C MaxTerra EXO+ TR (Front and Rear)

• Brakes:

  • Model: Shimano XT BL-M8100/BR-M8120 4-Piston
  • Rotors: Shimano SM-RT86 (Front: 203mm, Rear: 180mm), 6 Bolt

• Drivetrain:

  • Shifters: Shimano XT SL-M8100 12-speed
  • Crankset: Shimano XT FC-M8100, 175mm, 24mm spindle
  • Bottom Bracket: Shimano BB-MT800
  • Chainrings: Shimano 30T Black
  • Chain: Shimano XT CN-M8100 12-speed
  • Cassette: Shimano XT CS-M8100, 10-51T
  • Rear Derailleur: Shimano XT M8100 Shadow Plus

• Components:

  • Stem: Ibis BFD Black or i9 A318 Stem, 50mm, 31.8mm clamp
  • Handlebar: Ibis 800mm Carbon; Hi-Fi 30mm rise, 9º back sweep, 5º up sweep
  • Seatpost: Bike Yoke Revive Dropper, 185mm, Internal routing
  • Saddle: WTB Silverado Medium Cromoly
  • Grips: Lizard Skin Charger Black with Ibis Logo clamps

Conclusion: The Ibis Ripmo V2 continues to set the benchmark for all-mountain trail bikes, combining innovative design, top-tier materials, and thoughtful features to create a ride that excels in every scenario. Whether you’re climbing, descending, or traversing technical trails, the Ripmo V2 offers a perfect blend of performance, comfort, and durability, making it a top choice for serious trail riders.
