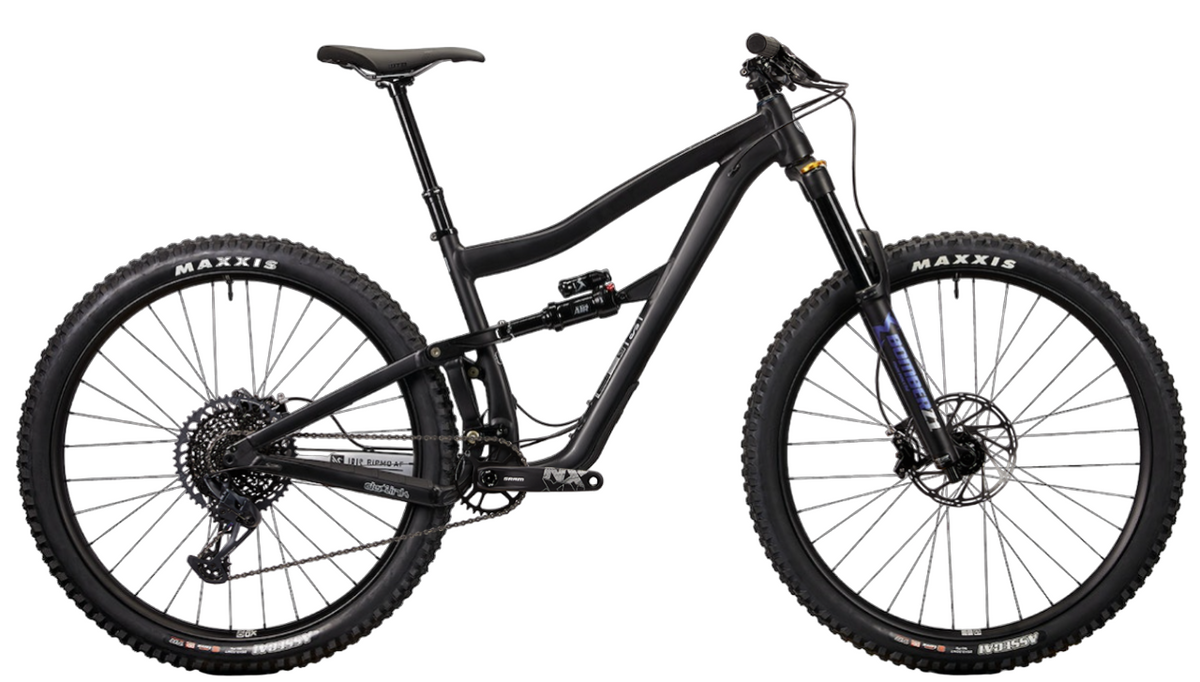

The Ripmo AF (Aluminum Frame) brings the award-winning performance of the carbon Ripmo to a wider, rowdier audience. It’s everything we love from the carbon Ripmo, plus a few tweaks.

IT’S METAL
Over our long tenure from moun­tain biking’s awk­ward ado­les­cence to its cur­rent any­thing-shred­dy era, we’ve exper­i­ment­ed with steel, alu­minum and tita­ni­um — remem­ber the Bow-Ti, the first super­bike? We remem­ber the met­al times too, and it feels good to offer a pre­mi­um ride expe­ri­ence to our broad­en­ing fam­i­ly of rid­ers, cour­tesy of durable, afford­able alu­minum alloy.

MODERN GEOMETRY
With a steep, 76-degree seat tube angle and a rangy but not stratos­pher­ic reach, the Rip­mo AF places rid­ers cen­tral­ly and upright over the bot­tom brack­et. It makes for an effi­cient posi­tion that can go the long haul with­out plac­ing too much weight on its slack, 64.9‑degree head­tube angle. A 44mm reduced-off­set fork is more sure­foot­ed on steep descents and stead­ies high speeds. Bet­ter up, bet­ter down.

DW LINK
Since 2005, we’ve part­nered with sus­pen­sion guru Dave Wea­gle on the dw-link sus­pen­sion plat­form. It pro­vides an unpar­al­leled com­bi­na­tion of climb­ing effi­cien­cy and down­hill per­for­mance, which has been proven repeat­ed­ly at the high­est lev­els of racing.

AIR & COIL COMPATIBLE
The Rip­mo AF is com­pat­i­ble with both coil and air shocks due to a more pro­gres­sive lever­age rate. It allows for coil’s lin­ear­i­ty to thrive and we spec air shocks with tunes that pro­vide pop with­out feel­ing too harsh. On the trail, it gives the sus­pen­sion a sup­ple feel through­out the entire­ty of the stroke, enhanc­ing trac­tion no mat­ter how deep you dig.

2.6” TIRE CLEARANCE
Ibis helped pio­neer the wide rim rev­o­lu­tion, which inspired the new crop of wider 2.4” — 2.6” tires. When paired togeth­er, this com­bo can be run at ultra low pres­sures which results in elbow-drag­ging cor­ner­ing trac­tion with­out sac­ri­fic­ing straight line speed.

PICK YOUR SIZE
We use words like small, medi­um, and large to describe our siz­ing because it’s easy to under­stand, but our ultra low stan­dovers give you the abil­i­ty to size your frame based on reach and preference.

LONG DROPPER POST
What’s bet­ter than a drop­per post? A longer one. Our frames are designed to accom­mo­date the longest drop­per posts pos­si­ble. Rid­ers over 5’8 (or 173cm) can eas­i­ly run a 185mm drop­per post, while folks between 5’ and 5’8 (152cm — 172cm) can use a post 125mm or longer depend­ing on inseam length.

REMOVABLE ISCG05 MOUNT
Our option­al ISCG 05 mount is there if you want it, remov­able if you don’t.

LIFETIME WARRANTY
If it’s our fault, we’ll fix it. Sim­ple as that.

SPECIFICATIONS

• Frame Model: Ibis Ripmo AF
• Frame Size: Large
• Frame Color: Black
• Frame Year: 2023
• Rear Shock: Marzocchi Bomber Air, 210x55
• Headset: Cane Creek Forty
• Spacers (yes/no / xxmm): 5 x 5mm
• Fork Model: Marzocchi Bomber Z1 Coil, 44mm offset, Medium spring installed
• Fork Travel: 160mm
• Front Axle: Fox Kabolt
• Front Axle Spacing: 15x110
• Front Wheel Diameter: 29"
• Front Hub: Ibis Logo
• Spoke Holes: 32
• Front Spokes: Sapim D-Light J-bend
• Front Nipples: Sapim souble square nipple
• Front Rim: Send 1 Aluminum
• Front Tire: Maxxis Assegai 29 x 2.5WT 3C MaxxGrip EXO+ TR
• Front Brake Model: SRAM Code RSC
• Disc Rotor Interface: 6-bolt
• Disc Rotor Model: SRAM Centerline
• Disc Rotor Diameter: 200mm
• Stem Model: Ibis
• Stem Length: 40mm
• Stem Steer Tube Diameter: 1 1/8"
• Stem Bar Clamp Diameter: 31.8
• Handlebar: Ibis Aluminum, 780mm
• Shifters: SRAM NX Eagle
• Brake Levers: SRAM Code RSC
• Grips: Lizard Skin Charger Black w/Ibis Logo clamps
• Brake Cables: SRAM
• Shift Cables: SRAM
• Seatpost: KS Rage-I Dropper 150mm
• Dropper Routing: Internal
• Saddle: WTB Volt CrMo Medium
• Bottom Bracket: SRAM DUB BSA
• Crankset: SRAM NX Eagle DUB Wide Spindle 175mm
• Chainrings: SRAM 30t
• Chain: SRAM NX Eagle
• Rear Derailleur: SRAM GX Eagle
• Derailleur Mount Type: Standard
• Rear Axle: Ibis Thru-axle
• Rear Axle Spacing: 12x148mm
• Rear Wheel Diameter: 29"
• Rear Hub: Ibis Logo SRAM XD
• Spoke Holes: 32
• Rear Spokes: Sapim D-Light J-bend
• Rear Nipples: Sapim souble square nipple
• Rear Rim: Send 2 Aluminum
• Rear Tire: Maxxis Minion DHR II 29 x 2.4WT 3C MaxxGrip EXO+ TR
• Rear Brake Model: SRAM
• Disc Rotor Interface: 6-bolt
• Disc Rotor Model: SRAM Centerline
• Disc Rotor Diameter: 180mm
• Comes with 200ml Stans Sealant
