Description

Intense M16C 27.5 - Expert - Black - Custom



We've all heard the saying, "Learn from your mistakes!" But what about learning from your successes? Looking at the history of Intense's M series, you'd be quick to notice it's decorated past and proven progression of elite level downhill race machines. Ultimately, you'd be able to see that the M16 is the latest result of Intense learning from its M series successes of yesteryear.

In 2015 Intense mastered the M16 as a hydroformed alloy frame, leaving them with a clear next step; replicate the M16 using the more exotic carbon fiber material. Aside from carbon fiber's obvious weight savings (nearly a 3 pound reduction from the alloy model) and stiffness capacities, working with carbon fiber permitted Intense further flexibility in not only its structural design, but also in its aesthetics, such as full internal cable routing and sleeker, more refined lines. Some of the less noticeable additions include built-in fork bumpers, molded rubber frame protectors, and a sweet little plastic fender to protect the rear shock from mud and trail-grime.

Designed with an insistent geometry, plenty of travel, and the perfect 27.5" wheel size, the M16C's talent lay in today's World Cup race scene. Sculpted to trim milliseconds, the M16 features VPP (Virtual Pivot Point) suspension to rid the rig of unnecessary compression without compromising bump absorption. The finished product gushes plush travel for more control, which therein equates to more speed.

Without any shortage of adjustability, the M16C allows you dial in the bike depending on what the run is looking like for the day. With 8.5 to 9.5 inches (215mm - 240mm) of travel via Can Creek Double Barrel Coil rear shock, and its gravity-tuned geometry, technical descents will become your playground in a hurry.

FEATURES:

  • World Cup tested geometry
  • EPS molded high modulus carbon frame
  • Compression molded carbon fiber upper link
  • Full internal cable routing for brake and shifting cables
  • Forged lower link
  • Double sealed pivots for long bearing life
  • Dual grease ports on lower link for easy maintenance
  • Full carbon dropouts and disk mounts
  • Angular contact bearings maximize stiffness
  • Collet axle pivots lock in place without pinch bolts
  • 5 year frame warranty
  • Frame Weight: 6.61lbs w/o shock

Specifications

  • Frame Model: M16 275 Monocoque UD Carbon Front and Rear Triangle 275" DH Frameset, ISCG 05 Mount, w/ 157 x12 mm spacing, 215 -240 mm travel
  • Frame Size: Medium
  • Frame Color: Black
  • Rear Shock: Fox Performance Elite DHX2 Rear Shock, (450lbs Small, 550lbs Medium, 650lbs Large)
  • Headset: Cane Creek, 40, alloy cartridge
  • Spacers (yes/no / xxmm): 15mm

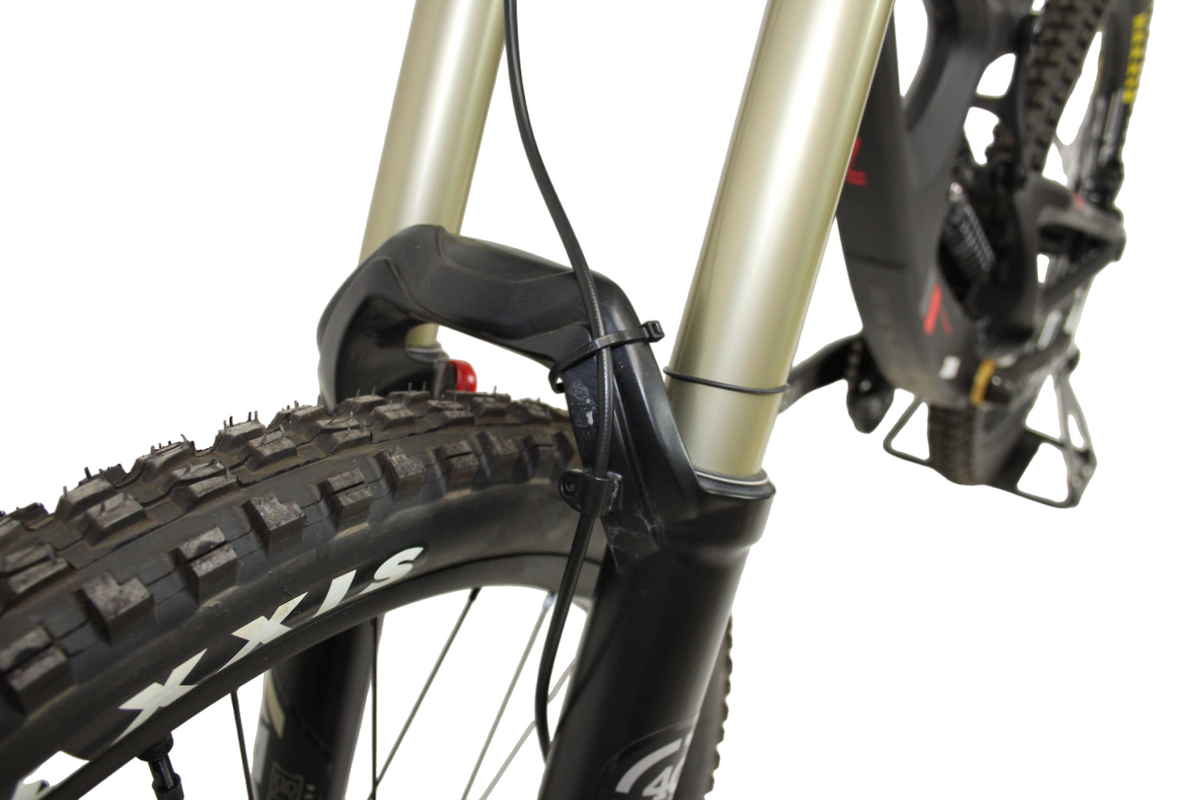

  • Fork Model: FOX Performance Elite 40 FLOAT Coil, 27.5"
  • Fork Travel: 200mm
  • Front Axle: Fox Bolt-On
  • Front Axle Spacing: 110 x 20mm
  • Front Wheel Diameter: 27.5"
  • Front Hub: RaceFace Vault 412
  • Spoke Holes: 28
  • Front Spokes: Straight Pull Double Butted
  • Front Nipples: Black Alloy
  • Front Rim: Raceface Atlas 30mm
  • Front Tire: Maxxis Minion DHF 27.5 x 2.5" DH SuperTacky
  • Front Brake Model: SRAM Guide R
  • Disc Rotor Interface: 6 Bolt
  • Disc Rotor Model: SRAM Centerline
  • Disc Rotor Diameter: 200mm
  • Stem Model: Renthal INTEGRA II Direct Mount
  • Stem Length: 45mm
  • Stem Steer Tube Diameter: 31.8
  • Stem Bar Clamp Diameter: 1 1/8"
  • Handlebar: Renthal Fatbar Lite DH 20mm x 780 mm
  • Shifters: Shimano Zee, 10 speed
  • Brake Levers: SRAM Guide R
  • Grips: Intense Dual Density Lock-On
  • Brake Cables: SRAM
  • Shift Cables: Shimano
  • Seatpost: Intense Recon, 300 x 31.6mm
  • Saddle: WTB Volt Sport
  • Bottom Bracket: Shimano Saint SM-BB80
  • Crankset: Shimano Zee FC-M640/645
  • Chainrings: Shimano Zee 36T
  • Chain: Shimano HG-X
  • Cassette: Shimano CS-HG50-10, 11-36T, 10 speed
  • Rear Derailleur: Shimano Zee, 10 speed
  • Derailleur Mount Type: Standard
  • Rear Axle: Bolt-On Thru Axle
  • Rear Axle Spacing: 157 x 12mm
  • Rear Wheel Diameter: 27.5"
  • Rear Hub: RaceFace Vault 412
  • Spoke Holes: 28
  • Rear Spokes: Straight Pull Double Butted
  • Rear Nipples: Black Alloy
  • Rear Rim: Raceface Atlas 30mm
  • Rear Tire: Maxxis Minion DHF 27.5 x 2.5" DH MaxxGrip
  • Rear Brake Model: SRAM Guide R
  • Disc Rotor Interface: 6 Bolt
  • Disc Rotor Model: SRAM Centerline
  • Disc Rotor Diameter: 200mm
