Kona Process 134 DL 27.5 - Fire Orange - 2022
Kona Process 134 DL 27.5 - Fire Orange - 2022
Product ID: GM111722-08
Shop all Kona | Shop all Full Suspension
View full detailsDescription
Kona Process 134 DL 27.5 - Fire Orange - 2022
X-Small - Perfect for Younger MTB Riders or Budding Racers
Not often considered, but with a limited range available for the younger fanatic it makes great sense to advance to a full size MTB that little bit earlier.
With a frame size suited to those 4ft 10" to 5ft 1" (147-155cm) it is ideal for the larger child or teen; giving them a future proof ride, the same standard of components as adults and the peace of mind from a top line bike.
You want a nice bike, but you’ve been hesitating to pull the trigger. What’s the right amount of travel? How can you be sure you’re getting great value? How do you know this bike is the only bike you’ll need? Because you gotta trust the Process, that’s why. The Process 134 DL 27.5 is thoughtfully put together to ensure every box is checked. It features a spec that puts the money where it matters: suspension, brakes, and drivetrain. It also comes in sizes XS-XL ensuring that no matter how tall or short you stand you’ll find a perfect fitting ride. It’s perfection in a bike.
KONA 6061 ALUMINUM
Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005/6061 tubing is butted and/or formed, meaning the tubing’s wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame’s strength and ride characteristics depending on its intended application.
INTERNAL HEADSET
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.

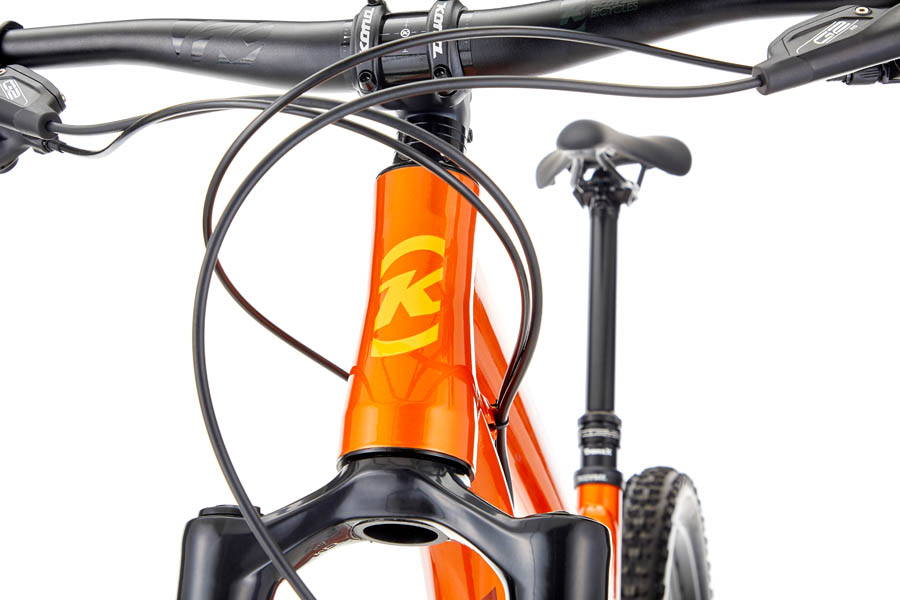

TAPERED HEAD TUBE
More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it’s needed.
TUBELESS COMPATIBLE RIMS
Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.
12x148mm AXLE
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12x148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12x142 thru-axle.
BEAMER INDEPENDENT SUSPENSION
Built to be off-the-top progressive, Beamer Independent Suspension helps the bike to stay higher in the travel and recover from hits more quickly. The Operators are instilled with what our product managers like to call “pure shock movement,” whereby the shock is protected from side load. Designed to be highly tuneable and extremely durable, the Beamer IS is our version of greased lightning.
27.5" WHEELS
The benefits of the 27.5-inch wheel are simple: they roll over obstacles and track better than 26-inch wheels, but are more maneuverable and nimble than 29-inch ones.
Specifications
- Frame: Kona 6061 Aluminum Butted 134mm Travel
- Fork: RockShox Pike Select RC Charger DebonAir 140mm Tapered 110mm Spacing
- Rear Shock: RockShox Deluxe Ultimate Trunnion
- Rims: WTB KOM Team i30 TCS
- Hubs: Front: Formula 110 x 15mm
- Rear: Formula 148 x 12mm
- Spokes: Stainless Black 14g
- Tires: Front: Maxxis Minion DHF EXO TR 3C 27.5 x 2.5" WT
- Rear: Maxxis Dissector EXO TR 3C 27.5 x 2.4" WT
- Bottom: Bracket SRAM DUB PF92
- Crankset: SRAM NX Eagle DUB
- Chainrings: 34t X-Sync Eagle
- Shifters: SRAM NX-Eagle
- Rear Derailleur: SRAM GX-Eagle
- Cassette/Freewheel: SRAM NX-Eagle 11-50t 12spd
- Chain: SRAM SX-Eagle
- Brakes: SRAM G2 RS
- Rotors: Front: SRAM Centerline 200mm
- Rear: SRAM Centerline 180mm
- Brake Levers: SRAM G2 RS
- Handlebars: Kona XC/BC 35
- Tape/Grips: Kona Key Grip
- Stem Kona: XC/BC 35
- Headset: FSA Orbit 1.5 EP ZS
- Seatpost: TranzX Dropper +RAD Internal 31.6mm
- Saddle: WTB Volt
- Pedals: Sold separately
