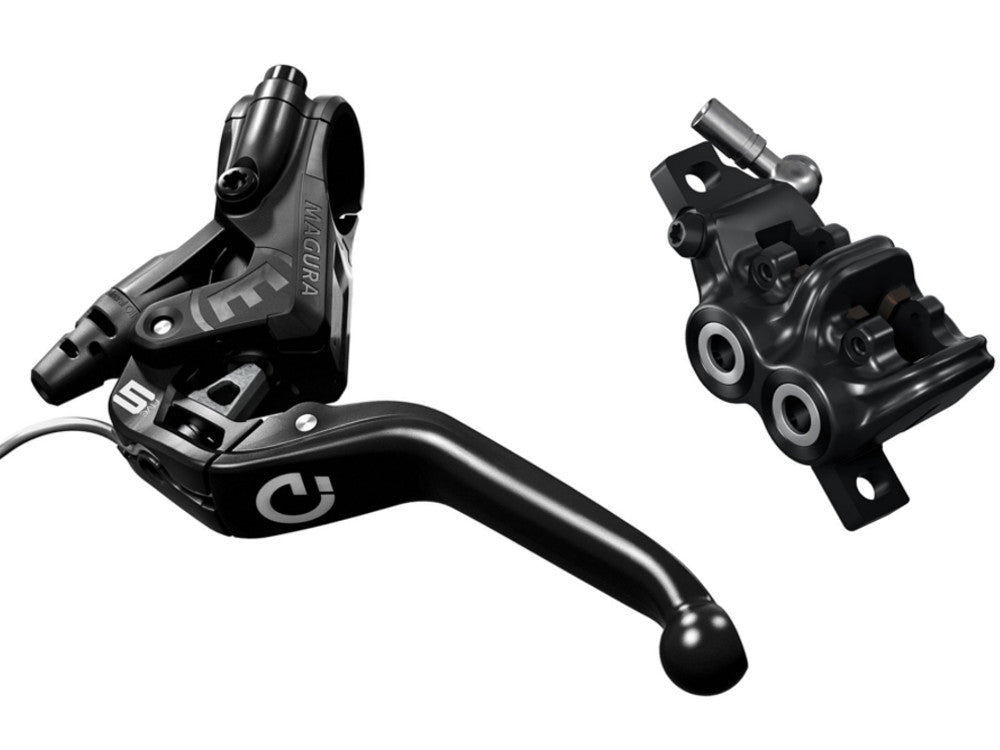

Magura MT5e eBike Disc Brake and Lever

Brakes everything, including the engine! Experience from the motorcycle sector paired with know-how for e-bikes. The braking power of the 4 pistons and high stability give E-Bikes S-Pedelecs more safety. Guaranteed.

With the new MT5e, MAGURA is targeting the booming market of e-bikes and fast S-Pedelecs with drive assistance up to 45 km / h.

The advantages that have already convinced the demanding All-Mountain / Enduro mountain bikers, are also in the city traffic not to be dismissed out of hand:
The lightweight brake handle housing made of MAGURA exclusive Carbotecture material in combination with the special Pedelec brake lever made of die-cast aluminum offers outstanding ergonomics.

Thanks to the magnetic change brake pistons, the extremely stiff four-piston brake caliper with its easy-to-change brake pads ensures superior braking power in every imaginable driving situation.

The legendary MAGURA Royal Blood as a brake fluid is not only more environmentally friendly than the DOT brake fluid of many competitors but also guarantees lasting low maintenance and thus low operating costs.

MAGURA has come up with a groundbreaking new solution for the MT5e: a mechanical switch that sits directly in the brake handle. So the brake light is activated even before the onset of braking.

This also benefits drive systems with recuperation mode if the drive shutdown is activated as early as possible.

Optimum heat dissipation is ensured by the revised Storm rotor. Compared to its predecessor, it has become 10% lighter and has an optimized friction range. This increases the braking performance at lower wear values.

NOTE: Due to the flip-flop design of the brake handle, the brake can be used by shortening the brake line for the front or rear wheel accordingly.

Manufacturer's note:

The term "HIGO opener" and "HIGO normally open" refers to the built-in switch - one opens, while the other closes the circuit. Here, the drive manufacturer must provide information about which version is the right one for each drive.

You will find the suitable brake discs in our shop

Technical specifications:

• Intended use : E-bike, S-pedelec, cargo bike
• Material caliper: forged aluminum
• Encoder unit: Carbotecture ®
• Material brake lever: aluminum
• Handle width adjustment: yes
• Brake caliper: one-piece forged, 4 pistons
• Belt adjustment: Automatic
• Brake mounting: Postmount
• Braking medium: Royal Blood mineral oil
• Brake line: plastic
• Brake Pad: Magura Performance, organic
• Mounting: double-sided (FlipFlop)
• Clamp: Divided
• Cable: 2200 mm Magura Disc Tube, easily shortened
• Special features: Easy-bleed technology, Rotatable brake pipe connection on the caliper, Split clamp, Optional shift mix
• Color: Black
