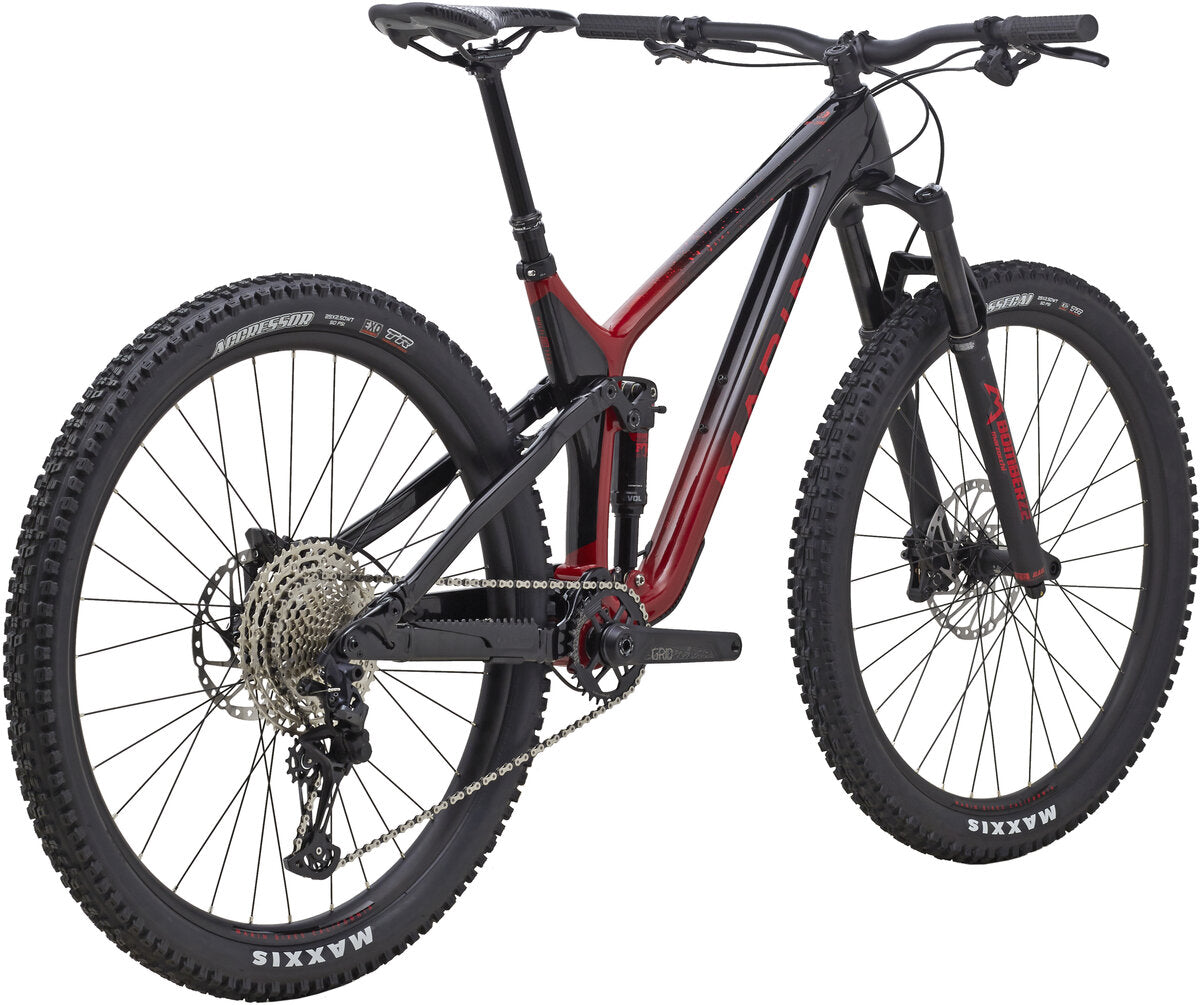

    Marin Rift Zone C1 29 - Gloss Red-Carbon - 2022 Gloss Red - Carbon Small

Marin

Marin Rift Zone C1 29 - Gloss Red-Carbon - 2023

Marin Rift Zone C1 29 - Gloss Red-Carbon - 2023

Regular price $2,599.00
Sale price $2,599.00 Was $3,699.00 Save $1,100.00
Marin Logo

EXTRA 10% OFF THIS ITEM

Use Code EVERYTHING10
Limited Time Only
Color
Size

Product ID: GM081622-21

Earn rewards points on this item / Join Now

Only 1 Items Left



Shop all Marin   |   Shop all Full Suspension

View full details

Description

Marin Rift Zone C1 29 - Gloss Red-Carbon



The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.

Key upgrades from Rift Zone 29 3:

  • Unidirectional Carbon Fiber Front Triangle
  • Series 4 Alloy Rear End

Specifications

  • Frame Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
  • Fork Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset
  • Rear Shock Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
  • Rims Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
  • Hubs Front: Forged Alloy, 110x15mm, Disc, 32H
  • Rear: Forged Alloy, 148x12mm, Quad Sealed Bearings, Disc, 32H, Standard Freehub Body
  • Spokes 14g Black Stainless Steel
  • Tires Front: Maxxis Assegai 29x2.5”, 3C MaxxTerra, EXO, Tubeless Compatible Rear: Maxxis Aggressor 29x2.5”, 3C Maxx Terra, EXO, Tubeless Compatible
  • Bottom Bracket Mego EXO 73mm BSA
  • Crankset New FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
  • Shifters Shimano SLX, 12-Speed, SL-7100R
  • Rear Derailleur Shimano SLX, 12-Speed, SGS
  • Cassette/Freewheel SunRace, 12-Speed, 11-51T, ED Black
  • Chain KMC X-12 Silver and Black
  • Brakes Shimano BR-MT420, 4-Piston Hydraulic Disc, 203mm Rotor[F] 180mm[R]
  • Brake Levers Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible
  • Handlebars Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  • Tape/Grips Marin Single Clamp Locking
  • Stem Marin 3D Forged Alloy, 35mm
  • Headset FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • Seatpost X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
  • Saddle Marin Speed Concept
  • Pedals Sold separately

* Subject to change without notice.

Geometry

Geometry Chart:
Size (mm) Small Medium Large X-Large
A. STACK (mm) 602.6 607.15 611.7 616.25
B. REACH (mm) 430 455 480 515
C. HEADTUBE ANGLE 65.5° 65.5° 65.5° 65.5°
D. HEADTUBE LENGTH (mm) 100 105 110 115
E. SEATTUBE ANGLE 76° 76° 76° 76°
F. SEATTUBE LENGTH (mm) 390 400 425 430
G. TOPTUBE EFFECTIVE (mm) 580.24 606.36 632.51 668.65
H. BB HEIGHT (mm) 344 344 344 344
I. BB DROP (mm) 34 34 34 34
J. CHAINSTAY (mm) 425 425 425 425
K. WHEELBASE (mm) 1158.92 1186 1213 1252
