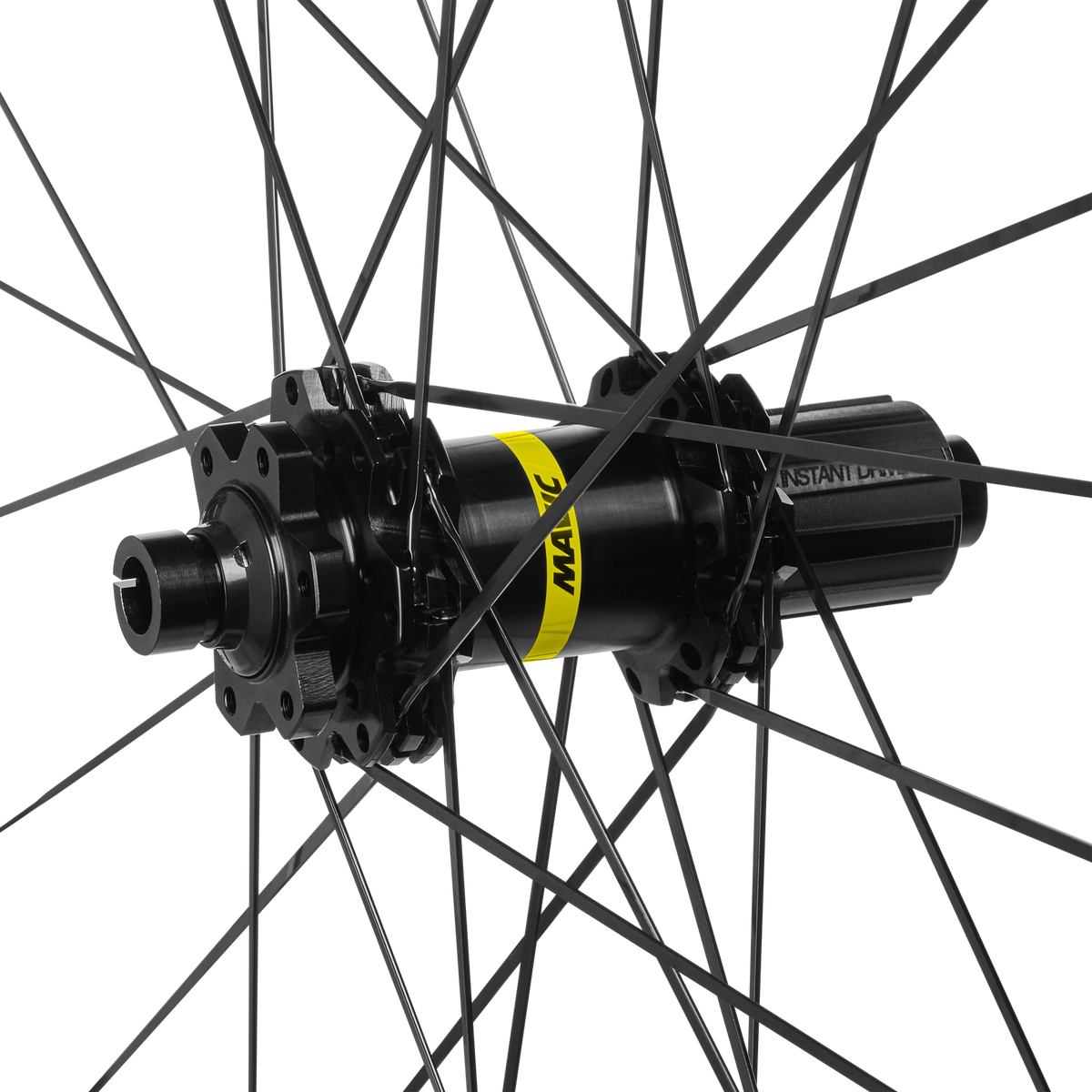

Mavic E-Deemax 30 29" E-MTB Wheelset

Shop all Mavic   |   Shop all MTB Wheels

  • Hassle free
    365 Day Returns
  • Safe and Secure
    for peace of mind
  • Pay by Card, PayPal, Apple Pay & Google Pay

keyboard_arrow_right Description

A 30mm E-bike specific rim that’s super strong, tubeless ready and with PFP technology.

The rim is welded and laced with 28 double butted spokes on downhill inspired hubs. All the E-Deemax reliability and toughness within reach.

The name E-Deemax has become a reference for E-Bike riders, this new E-Deemax 30 lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price. One of the key factors is our Pinch Flat Protection technology, a rim design with a wider contact surface at the top of sidewall, which significantly reduces the risk of tire cuts and punctures. The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tire pressure for better traction and control.

As all our E-Deemax wheelsets, this new option is lab and field validated for a max total weight of 180Kg.

Our Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability.

The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The E-Deemax 30 is available with 6-bolt or center lock brake rotors in 29” only and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories.


  • Strong and durable
  • Welded rim with Pinch Flat Protection
  • Less risk of a flat
  • A super strong rim profile
  • A perfectly sealed rim profile
  • E-Bike specific and reliable construction
  • 28 wide double butted spokes
  • Super reliable ID360 double ratchet freewheel system
  • Hubs inspired by downhill practices
  • Tubeless-ready technology
  • A tubeless rim profile with tubeless tape makes it easy to ride tubeless tires for more traction and less risk of flat



  • Material: Maxtal
  • Height: 22 mm
  • Joint: SUP welding technology
  • Drilling: traditional (front/rear 28 holes)
  • Braking: disc
  • Profile: asymmetrical
  • ETRTO size: 622x30TC
  • Tire: UST Tubeless Ready
  • Tire: UST Tubeless Ready - Use with Mavic Tubeless Tape


  • Material: steel
  • Shape: straight, flat, constricted, antirot (rear)
  • Shape: straight, flat, constricted (front and rear opposite freewheel side)
  • Lacing: crossed 3 (front and rear)


  • Body material: aluminum
  • Disc standard: 6 Bolts
  • Axle material: aluminum
  • Axle size: front 15x110 / rear 12x148
  • Freewheel technology: Instant Drive 360
  • Freewheel: Sram XD MTB
  • Bearing technology: QRM automatic setting - sealed cartridge

Intended use:

  • Maximum tyre pressure: 2.95bar/43PSI with a 52mm tyre - 1.55bar/22PSI with a 125mm tyre
  • Recommended tire sizes: 60mm to 76mm (2.35 to 3.0)
  • For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 180kg, E-bike included
  • Weight: 2160g
