Niner RIP 9 RDO 29 - 3-Star - SRAM GX Eagle - Silver-Baja Blue - 2022

Niner RIP 9 RDO 29 - 3-Star - SRAM GX Eagle - Silver-Baja Blue - 2022

Regular price $3,999.00
Sale price $3,999.00
Niner Logo

EXTRA 10% OFF THIS ITEM

Use Code EVERYTHING10
Limited Time Only
Color
Size

Product ID: BW060722-01

Earn rewards points on this item / Join Now
Out of stock


Shop all Niner   |   Shop all Full Suspension

View full details

Description

Niner RIP 9 RDO 29 - 3-Star - SRAM GX Eagle - Silver-Baja Blue - 2022



Expect the best from Niner's most popular build kit, the 3-Star SRAM GX Eagle. Mated to the RIP 9 RDO frame and FOX Float Factory suspension, every feature of our most capable trail bike is fully expressed.

The trail taming RIP 9 RDO
For more than a decade, the RIP 9 RDO trail bike has ruled our off-road lineup. For 2019, this flagship bike evolves again. Our do-it-all trail bike hits the sweet spot with 140mm of consistent, controlled CVA suspension, progressive and adjustable geometry, and increased frame stiffness. Plus it’s got more standover for 170mm dropper posts, longer reach, and a shorter head tube. More versatile and capable than ever before, reach for your RIP to tackle any trail.

RIDER TYPE: Trail, Enduro, All-Mountain
MAX WHEEL SIZE: 29"
SIZE RANGE: S, M, L, XL

COLORS: Baja Blue/Silver, Santa Fe Sand, and Satin Carbon

  • DT Swiss M1900 wheels
  • FOX 36 Float Factory GRIP 2 EVOL fork w/150mm travel
  • SRAM GX Eagle drivetrain and brakes

- FEATURES -

A little less travel, and a LOT more bike

The new RIP 9 RDO sports 140mm of CVA suspension on a light, stiff, strong RDO carbon frame. With a 150mm travel FOX 36 fork up front, a 66-degree head tube angle, and a 75.8-degree seat tube angle, we’re hitting the sweet spot of efficiency and capability. We also built in more standover clearance and a shorter seat tube to accommodate 170mm dropper posts.

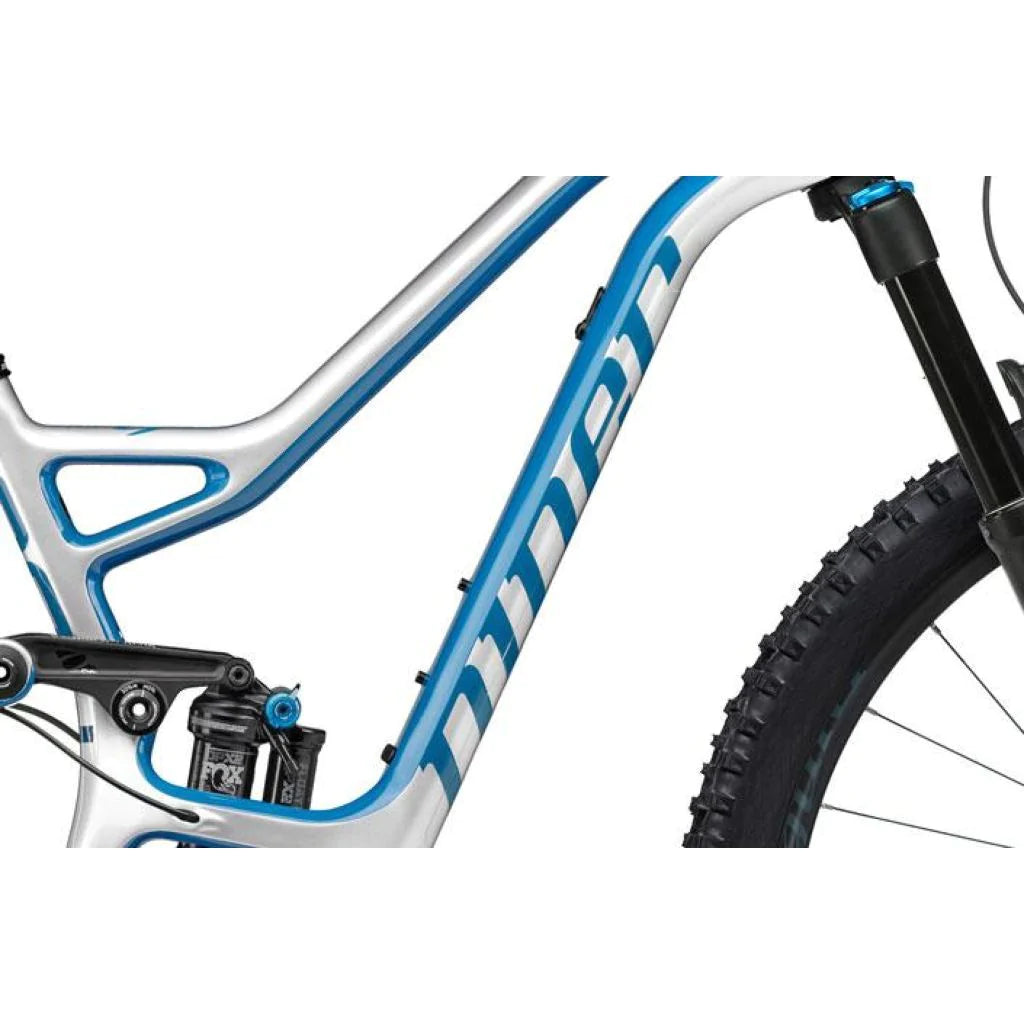

By adding new Rib Cage struts across the front triangle, flattening the top and down tubes, widening the main rocker link pivot, and beefing up the rear triangle, the entire bike is stiffer from front to back. The struts reduce bottom bracket deflection while keeping the upper portion of the front triangle supple and compliant. And the wide, flat surfaces found on Niner’s top and downtube help to absorb frontal impacts and vibrations while resisting deflection (twisting) under torsional load.

The longest, lowest, and slackest Niner ever made

Thanks to the flip-chip, two different geometries mean two bikes in one. The high mode geo is perfect for everyday trail riding. This bike launches uphill and over technical terrain, thanks to CVA suspension and the steep seat tube angle. When you’re all out of breath, turn around and point it down. Drop-in with confidence thanks to the long reach, low BB, and slack, 66-degree head tube angle.

The RIP’s low mode brings out its rock star, party down personality. By slacking out the head angle a full degree to 65, and lowering the bottom bracket 7mm, the RIP transforms into a whole new bike that’s perfect for chairlift days, shuttle sessions and backcountry excursions with long, rowdy descents.

CVA suspension

Niner’s Constantly Varying Arc, or CVA™, is built to be supple yet stable, controlling unwanted suspension movement with calibrated anti-squat, yet remaining active while climbing and descending. Courtesy of a new higher overall leverage ratio, starting off at 3.0 and ending right around 2.3 for an average of 2.55, off the top it’s easier to set the shock in motion and overcome static friction. It’s also more supportive in the midstroke, holding the rider higher up in travel.

Going down, it’s consistent and controlled. With no need for heavy compression damping to control unwanted movement, CVA is tuned for consistent, confidence-inspiring behaviour on descents. It’s perfectly balanced, so the result is stable yet supple, active, ground-hugging traction in every situation - cranking uphill, ripping downhill, and everywhere in between.

RDO carbon fiber

Niner starts with the best grades of raw carbon layered precisely according to the stress points on the frame structure. In construction, our process employs rigid internal molds and results in tighter, more consistent compaction of the carbon fabric. The result? Increased precision in wall thickness and reduced resin pooling in the final product. We can build more elaborate structures with better ride tuning, increased strength, outstanding durability, and less weight.

- NINER TECHNOLOGY -

Room to Roam
  • Need room to roam? Niner has it. The RIP 9 RDO 29er has clearance to run your choice of 2.6-inch wide tires.
CVA Suspension
  • Supple yet stable, and the confidence to drop into gnarly lines, knowing you’ll get consistency and control from top to bottom: that’s CVA suspension.
RDO Carbon Fiber
  • Niner’s premium Race Day Optimized carbon fiber means more strength, higher stiffness, and less weight.
Full Sleeve Cable Guides
  • No more fishin’. Niner built-in end-to-end cable guides through the frame for easy installation and maintenance.
Enduro Max Black Oxide Pivot Bearings
  • Niner uses the smoothest, most durable pivot bearings in the industry. Made by Enduro, they’re built for life.
Protection Where You Need It
  • Factory-installed, integrated frame protection to keep your ride safe from harm, even when you're in over your head.
Lifetime Warranty
  • Ride, race, rally. Niner has you covered with warranty service, small parts, and a support team that actually answers the phone.

Specifications


  • Frame: NINER RDO CARBON FIBER, 140MM TRAVEL, GEO FLIP CHIP, RIB CAGE CONSTRUCTION, FULL SLEEVE CABLE ROUTING, ENDURO MAX BLACK OXIDE PIVOT BEARINGS
  • Fork: FOX 36 FLOAT FACTORY GRIP 2 EVOL, HSC, LSC, HSR, LSR, KASHIMA COAT, 150MM, 110X15MM, 44MM OFFSET
  • Rear Shock: FOX FLOAT X FACTORY EVOL 2 POSITION W/ ADJUST, KASHIMA COAT
  • Rims: DT Swiss M 1900 SPLINE, aluminum clincher, 30mm internal
  • Hubs: DT Swiss 370 Centerlock, with 3-pawl
  • Spokes: DT Champion straight pull
  • Axles Front: Boost 15x110mm thru axle
  • Rear: Boost 12x148mm thru axle
  • Tires FRONT: SCHWALBE HANS DAMPF EVO SUPER TRAIL TLE ADDIX SOFT 2.6
  • REAR: SCHWALBE NOBBY NIC EVO SUPER TRAIL TLE ADDIX SPEEDGRIP 2.6
  • Bottom Bracket: SRAM DUB BSA THREADED
  • Crankset: SRAM DESCENDANT 7K EAGLE DUB, 32T, 170MM
  • Chainrings: 32T
  • Shifters: SRAM GX EAGLE 12SP
  • Rear Derailleur: SRAM GX EAGLE 12SP
  • Cassette/Freewheel: SRAM EAGLE XG 1275, 10-52T
  • Chain: SRAM GX EAGLE 12SP
  • Brakes: SRAM G2 R
  • Brake Levers: SRAM G2 R
  • Handlebars: RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
  • Tape/Grips: NINER GRRRIPS L/O NYLON FLANGED SOFT COMPOUND
  • Stem: RACE FACE AEFFECT R 40MM, 35MM CLAMP
  • Headset: NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40
  • Seatpost: KS LEV SI (XS/S-100MM, M/L/XL-150MM)
  • Saddle: NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC
