Pivot

Pivot Shuttle SL 29 Ebike - Ride SLX/XT - Desert Sage Green - 2022

Pivot Shuttle SL 29 Ebike - Ride SLX/XT - Desert Sage Green - 2022

Regular price $8,299.00
Sale price $8,299.00 Was $8,999.00 Save $700.00
Pivot Logo

FREE SHIPPING ON ALL SALE BIKES
Color
Size

Product ID: GM021723-31

Earn rewards points on this item / Learn More

Only 1 Items Left



Shop all Pivot   |   Shop all Electric Mountain Bikes

View full details

Description

ACCELERATE

Flipping the script that most e-bike builders are following, we decided to focus on what matters - the dynamic of trail riding - and placed an emphasis on light weight, refined suspension, crisp handling, and game-changing performance.

FAZUA RIDE 60 DRIVE UNIT:

  • Torque: 60 nm
  • Maximum Power: 450 Watts
  • Battery Capacity:     430 Wh
  • Motor Weight:    4.3 lb / 1.96 kg
  • Battery Weight: 4.85 lb / 2.2 kg

Get everything you need to know about the Shuttle SL:

  • Sleek Full Carbon Hollow Core Frame
  • Seamless Integrated FAZUA Ride 60 Drive System
  • Progressive Trail Geometry
  • Flip Chip Geometry Customization
  • Size Specific Chainstay Lengths
  • 132mm Travel DW-Link Suspension
  • Trunnion Mounted Float X
  • 150mm Fox 36 Grip 2 with custom eMTB Tune
  • Trail gripping Maxxis Dissector Tires
  • Full-size water bottle fits inside the front triangle
  • Pivot's Cable Port System
  • 60 Nm of Torque/ 450 Watts Peak Power
  • Integrated 430 Watt/Hour Battery
  • Superlight System 9.25lbs (4.2kg)
  • 3 Assist Levels + Boost Mode
  • Drag-free pedaling without assist

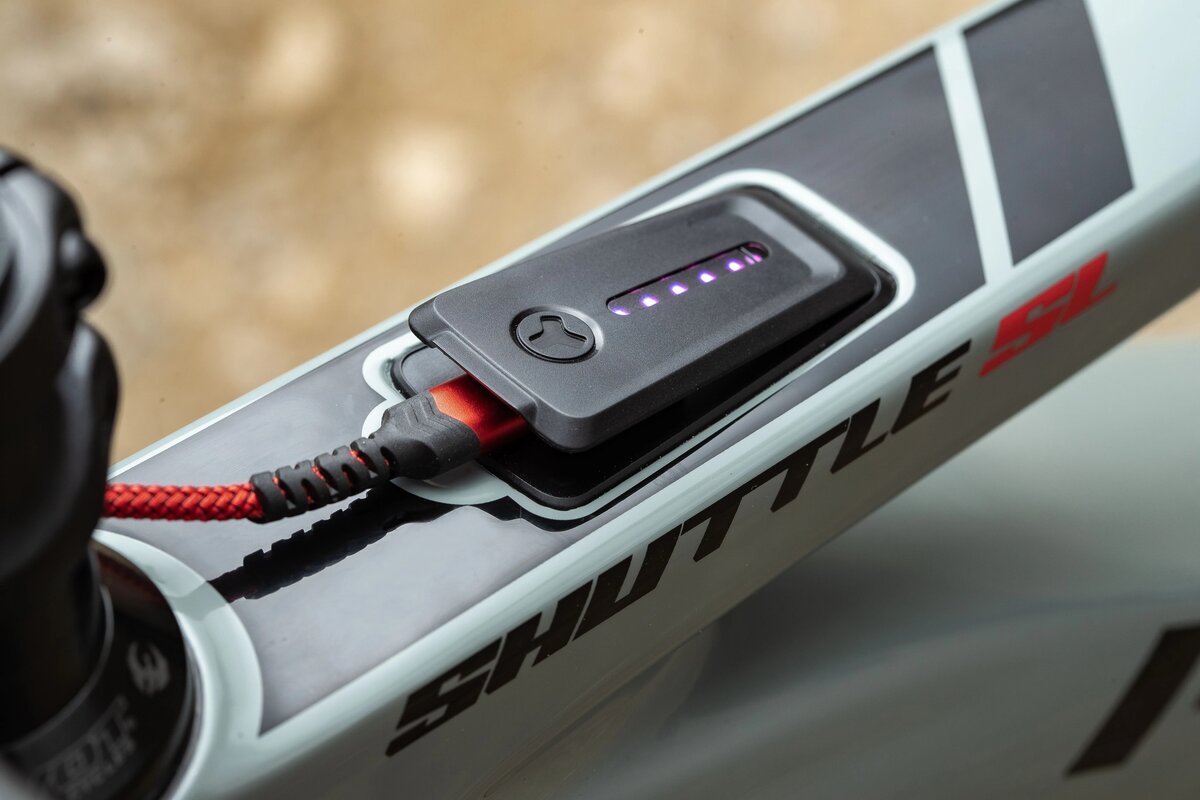

  • Magnetic Charging Port & Cover
  • World Cup Build starting at 36.25 pounds (sub 17kg)

Specifications

Frameset
  • Frame: Hollow Core carbon front and rear triangles; molded chainstay, seatstay, and down tube protection
  • Fork: FOX FLOAT 36 Performance E-MTB, GRIP damper, 44mm offset
  • Shock: FOX FLOAT X Performance, trunnion mount, 185mm x 55mm
  • Motor: FAZUA RIDE 60, 43V, 60 Nm max torque, 250 W continuous power, 450 W max power
  • Battery: Integrated, non-removable unless motor is removed; second 210 Wh range extender battery available
Wheels
  • Hubs: DT Swiss 370, 15x110mm Boost front, 12x157mm SuperBoost rear with MICRO SPLINE driver
  • Wheels: DT Swiss M1900, 30mm inner width
  • Wheel Size: 29"
  • Tires: Maxxis Dissector, 3C MaxxTerra compound, EXO casing, TR, 29"" x 2.4” WT
Drivetrain
  • Chain: Shimano SLX M7100, 12-speed
  • Crank: Praxis ETOR E-MTB
  • Rear Derailleur: Shimano Deore XT M8100, 12-speed, SGS cage
  • Shifters: Shimano SLX M7100, 12-speed, I-SPEC EV mounting bracket
Components
  • Brakeset: Shimano SLX M7120, 4-piston, Galfer rotors (203mm front, 180mm rear), Shimano SLX M7120
  • Handlebar: Phoenix Race Low Rise Aluminum, 780mm width
  • Saddle: WTB Volt Race (for Pivot/Phoenix), medium width
  • Seatpost: e*thirteen Vario dropper, 31.6mm, Single bolt, 36.4mm
  • Drop: 150-180mm (SM/MD) / 180-210mm (LG/XL)
  • Stem: Phoenix Team Enduro/Trail
  • Grips: Phoenix Factory, lock-on
  • Headset: Pivot Precision, sealed cartridge bearings, ZS44 upper, ZS56 lower
