Race Face
Race Face Vault J-Bend MTB Disc Hub - Boost - Rear - Black
Race Face Vault J-Bend MTB Disc Hub - Boost - Rear - Black
4 interest-free payments or as low as $35/mo with Affirm. Check your purchasing power
Product ID: GM04082063
Only 1 Items Left
Shop all Race Face | Shop all MTB Hubs
View full detailsDescription

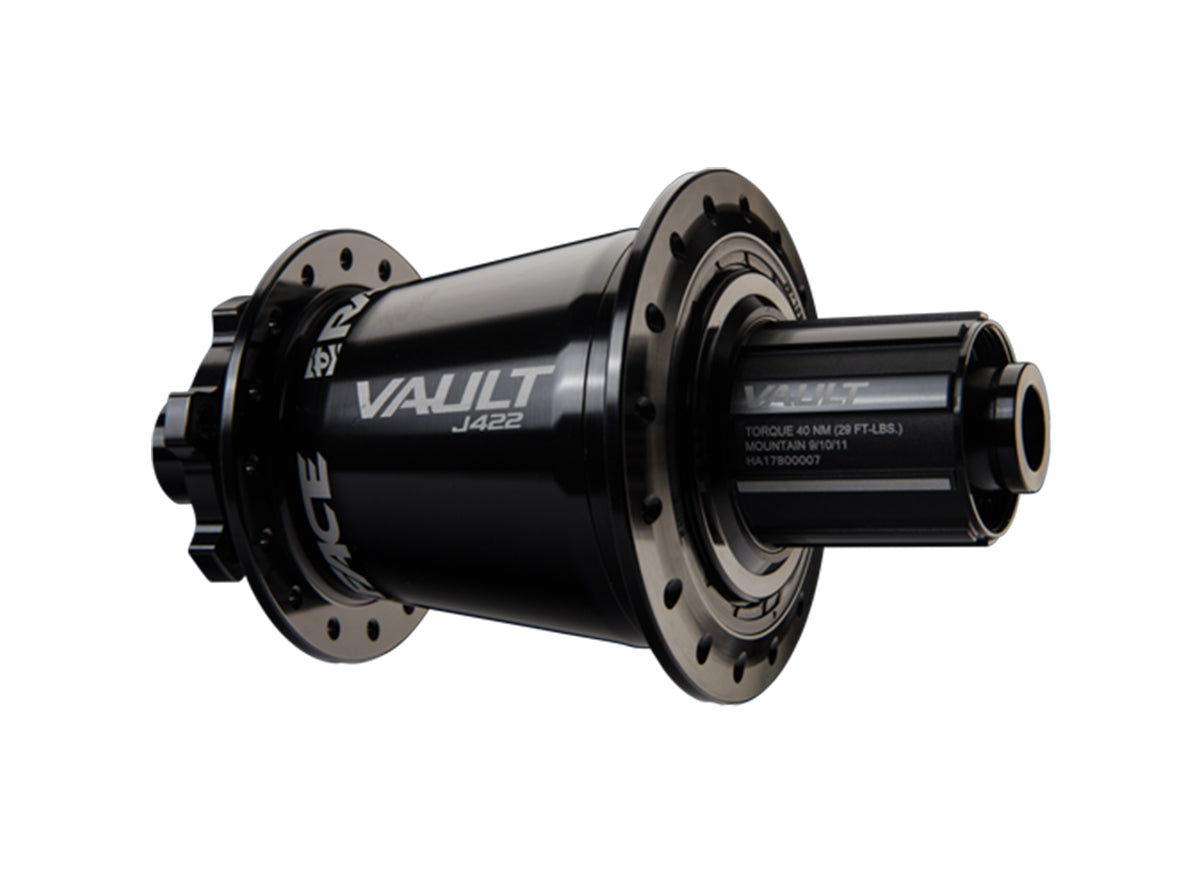

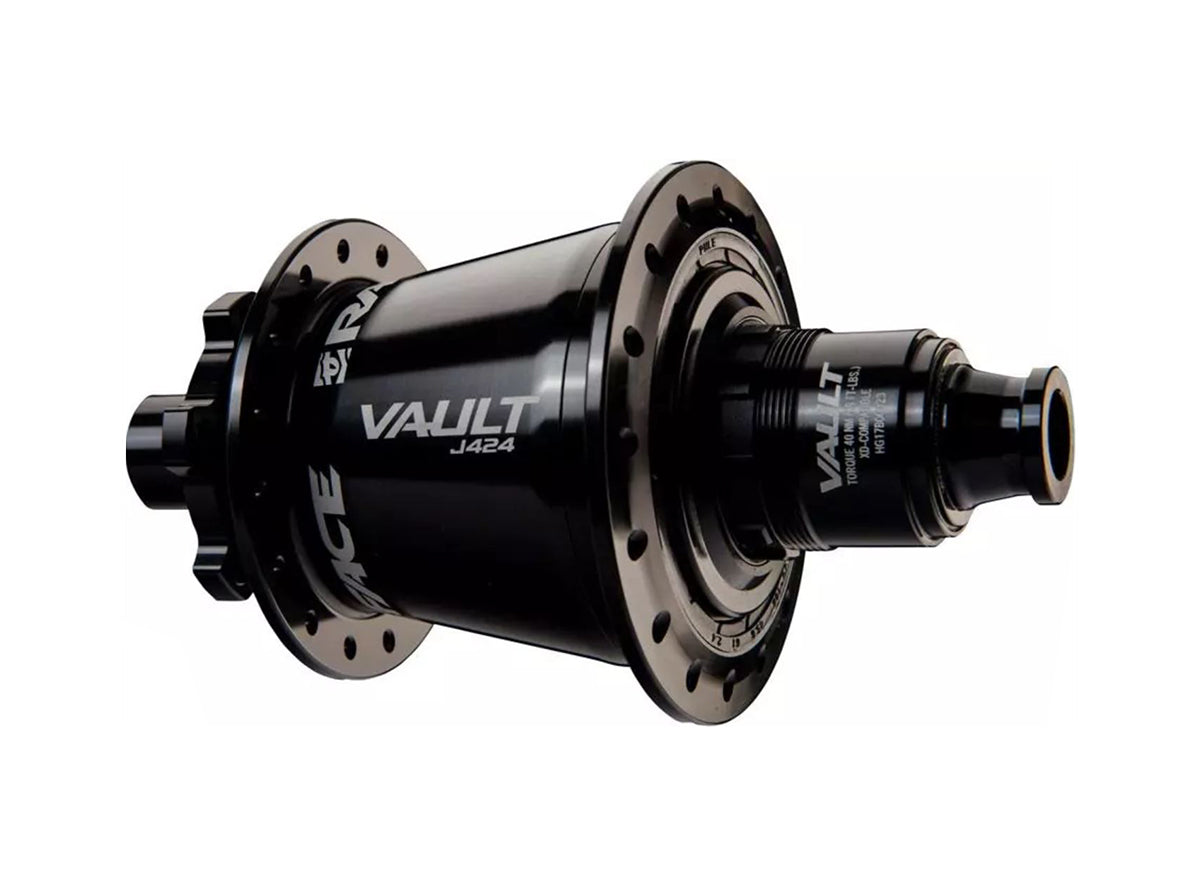

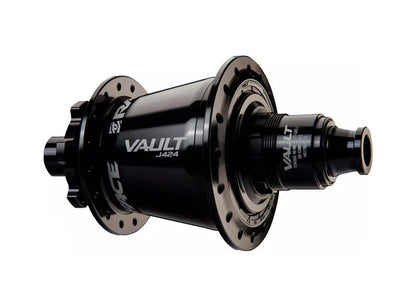

Race Face Vault J-Bend Boost Rear Hub
The super fast engagement of Vault, now available for your custom wheel builds. Available in Boost and non-Boost, multiple axle standards and Shimano or XD cassette bodies. An oversized hub shell increases torsional and lateral stiffness and proven 6902 bearings were selected due to their large ball diameter and durability. A 60 tooth drive ring alternately engages six double tooth pawls, giving you 3° engagement for near-instant power transfer. Wide bearing placement was designed to decrease load on the bearings, improving lifespan. Protecting these internals are low-drag labyrinth seals designed specifically for the Vault hubs. Finish it off with tool-free endcap swaps and you have a hub that not only moves faster, but adapts faster.
Vault colored hubs are available in 32 hole Boost configurations, equipped with either Shimano or XD cassette
Features
- J-Bend spoke compatible.
- Boost and Non-Boost Options.
- Shimano or XD Cassette Body Available.
- 6 Pawls with 2 Teeth Each.
- 120 Points for 3° of Engagement.
- Tool free endcaps.
- Vault colored hubs are available in 32 hole, Boost configurations.
Specifications
- Built For: XC/TRAIL/ENDURO/DH
- Available Options: SHIMANO OR XD COMPATIBLE
- Rear Hub: 12X148 BOOST, 12X150, 12X157, 12X142, 12X135, 10X135QR
- Front Hub: 15X110 BOOST, 15X110 TORQUE CAP, 15X100, 15X100 TORQUE CAP, 20X110, 20X110 BOOST, 9X100QR
- Weight: 177G FRONT, 305G REAR (LIGHTEST CONFIG)
- Spokes: 32, 28
