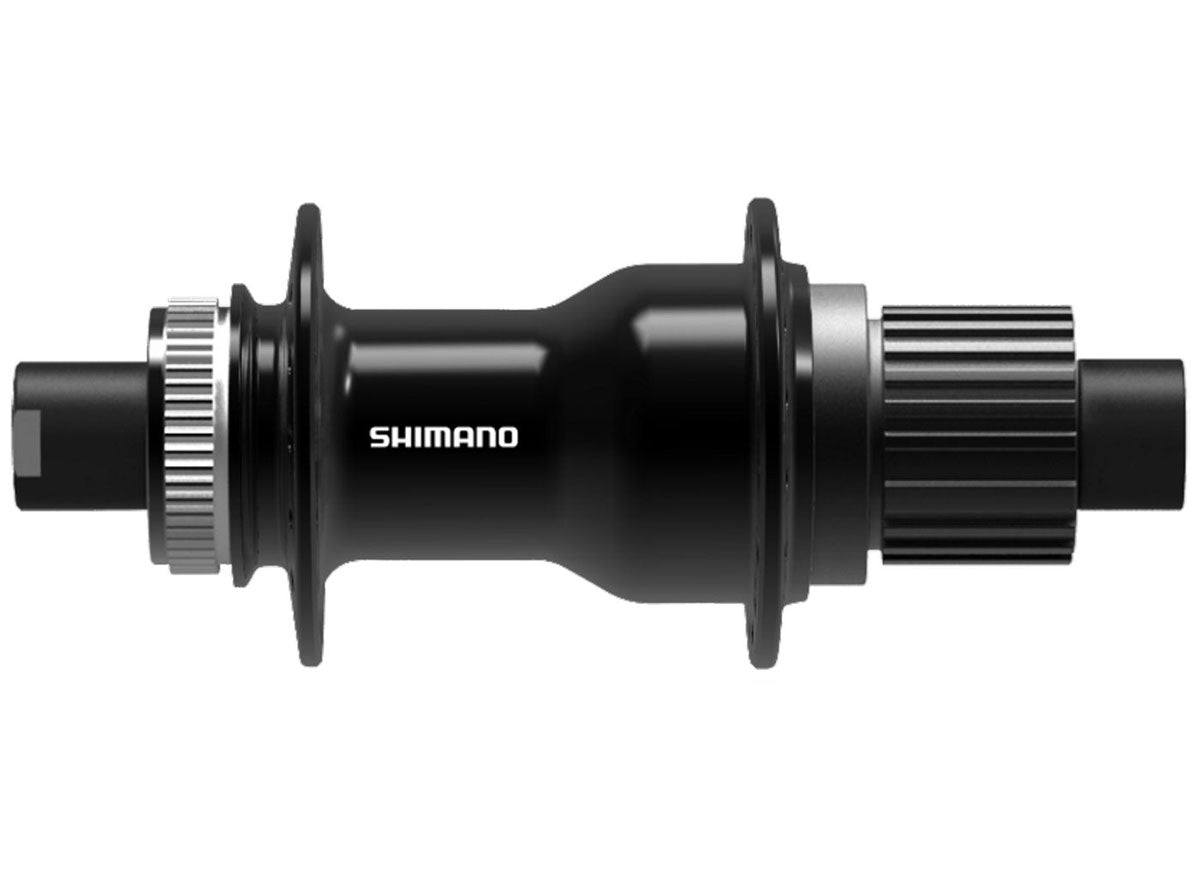

Stiff and lightweight FREEHUB for reliable trail performance

FEATURES

• Simple setup and reliable trail performance
• Easy disc brake rotor installation with spline mount and lock ring
• Stiff and lightweight 12 mm E-THRU skewer system
• Labyrinth & Contact Sealing
• Smaller spline diameter for 10T top gear
• O.L.D.: 142 mm
• #13 and #14 spoke compatible

SPECIFICATIONS

• SERIES SLX M7100 Series
• Color|1 Hub shell Black
• Brake type CENTER LOCK disc brake
• Rear speeds 12
• O.L.D. (mm) 142
• Spoke hole|28H ✔
• Spoke hole|32H ✔
• Spoke hole|36H ✔
• 10 tooth cog compatible ✔
• External serration disc brake rotor lock ring|Without ✔
• Internal serration disc brake rotor lock ring|Without ✔
• Axle fixing method 12 mm E-THRU
• Thru axle (length x inner diameter ; mm)|142 x 12 ✔
• Flange distance (mm) 55.45
• Offset (mm) 7.6
• P.C.D. left / right (mm) 50.5/51.5
• Flange diameter left / right (mm) 59.3/60.3
• Spline type|MICRO SPLINE ✔
• Engagement type Pawl ratchet
• Seal|Hub Labyrinth+Contact
• Seal|FREEHUB body Contact
