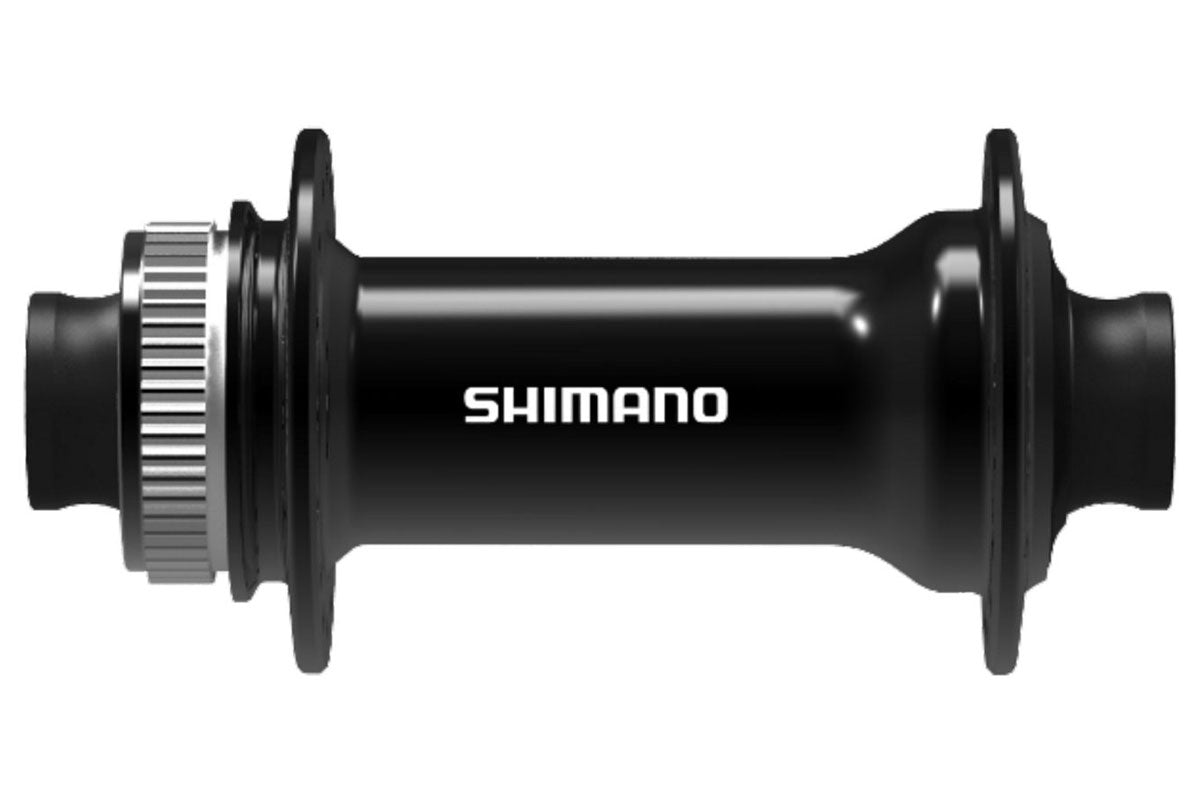

The HB-TC500-15 Boost front hub from Shimano offers the well-known reliability and performance in the E-Thru thru axle version for reliable trail performance.

• Easy installation and reliable trail performance
• Easy brake disc installation thanks to teeth and lock ring
• Stiff and lightweight 15mm E-THRU thru axle system
• Labyrinth and grinding seal
• Installation width 110mm
• Compatible with 13G and 14G spokes

SPECIFICATIONS

• Area of ​​application: MTB, e-bike
• Model: HB-TC500-15-B
• Rotor mount: Center-Lock Disc
• Hole circle diameter: left 44mm / right 44mm
• Flange diameter: Left 52.8mm / right 52.8mm
• Flange distance: 70.2mm
• Offset: 5.3mm
• Hub: labyrinth and contact seals
• Mounting: E-Thru thru axle Boost
• Installation dimensions: 15x110mm
• Hub body: aluminum
• Axle: steel
