Shimano RS710 C32 Carbon Disc 700c Road Wheel - Rear

The Next Level Of Shimano Carbon Wheel
Shimano has brought full carbon wheels to a new level with a development concept shared with DURA-ACE and ULTEGRA. The new full carbon wheels offer balanced performance at a lower price. The C32, with its focus on acceleration and climbing, shares DNA with the C36 DURA-ACE and ULTEGRA wheel options. Get your Shimano 105 WH-RS710 C32 Carbon DB Clincher Front Road Wheel today while stocks last at this price.

Key Highlights:

• Simple design that can be easily matched to any bike
• Most affordable SHIMANO carbon road wheel

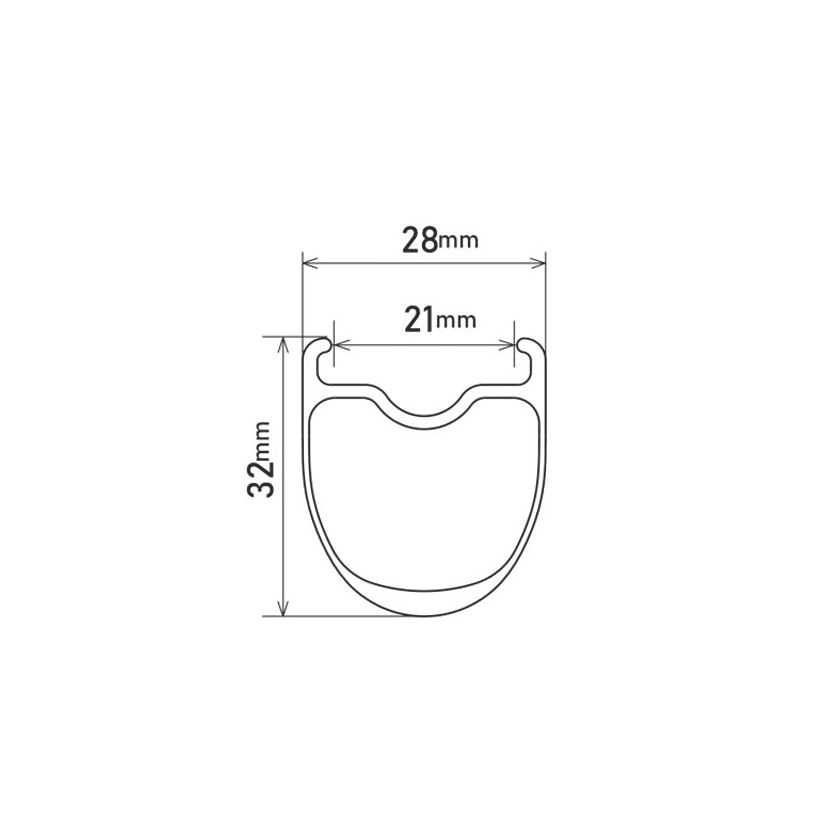

• 32mm height full carbon rim
• Internal rim width: 21mm
• Road 11 and 12-speed compatible

Centre Lock System
The Centre Lock System makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.

D2 Technology
Aerodynamic performance is affected by wind direction. To create the D2 rim, SHIMANO engineers considered both frontal and cross winds, aiming to achieve optimal performance in real-world riding conditions. Extensive prototype testing, in the wind-tunnel and on the road, proved that a wide rim shape with a deep tyre bed performs best across a wide range of conditions. At yaw angles ranging from 0 to 15 degrees, the SHIMANO D2 rim profile reduces air drag better than others aero shape rims. This rim design also boosts lateral wheel stiffness and offers improved vertical compliance for increased control, comfort and durability on the road.

FEATURES:

• Model No: WH-RS710-C32-TL-R
• Series: SHIMANO
• Average weight: 839g
• Brake Type: CENTER LOCK disc brake
• Axle Fixing Method: 12mm E-THRU
• O.L.D.: 142mm
• Rear Speeds: 12/11
• Thru Axle (length x inner diameter) 100mm x 12mm
• D2 Rim: YES
• Disc Mount 140mm Disc brake rotor compatible: YES
• Disc Mount Centre Lock: YES
• Front/Rear Wheel: Rear
• Reflector AS: CATEYE RR-550-WUA SW
• Reflector DIN: CATEYE RR-317-WUA SW
• Reflector JIS/CPSC: CATEYE RR-550-WUW SW
• Rim Height: 32mm
• Rim Requires Rim Tape: YES
• Seal Freehub Body: Contact
• Seal Hub: Contact
• Spokes Bladed: YES
• Spokes Butted: YES
• Spokes Number: 24
• TIre Recommended Size: 25-622 - 32-622
• TIre Type: Tubeless
• Wheel Size: 622 x 21C
• Engagement Type: Pawl Ratchet
• Rim External Width: 28mm
• Rim Internal Width: 21mm
• Spokes Diameter: 2.0-1.6-2.0mm
• Specification: C32-TL-R
