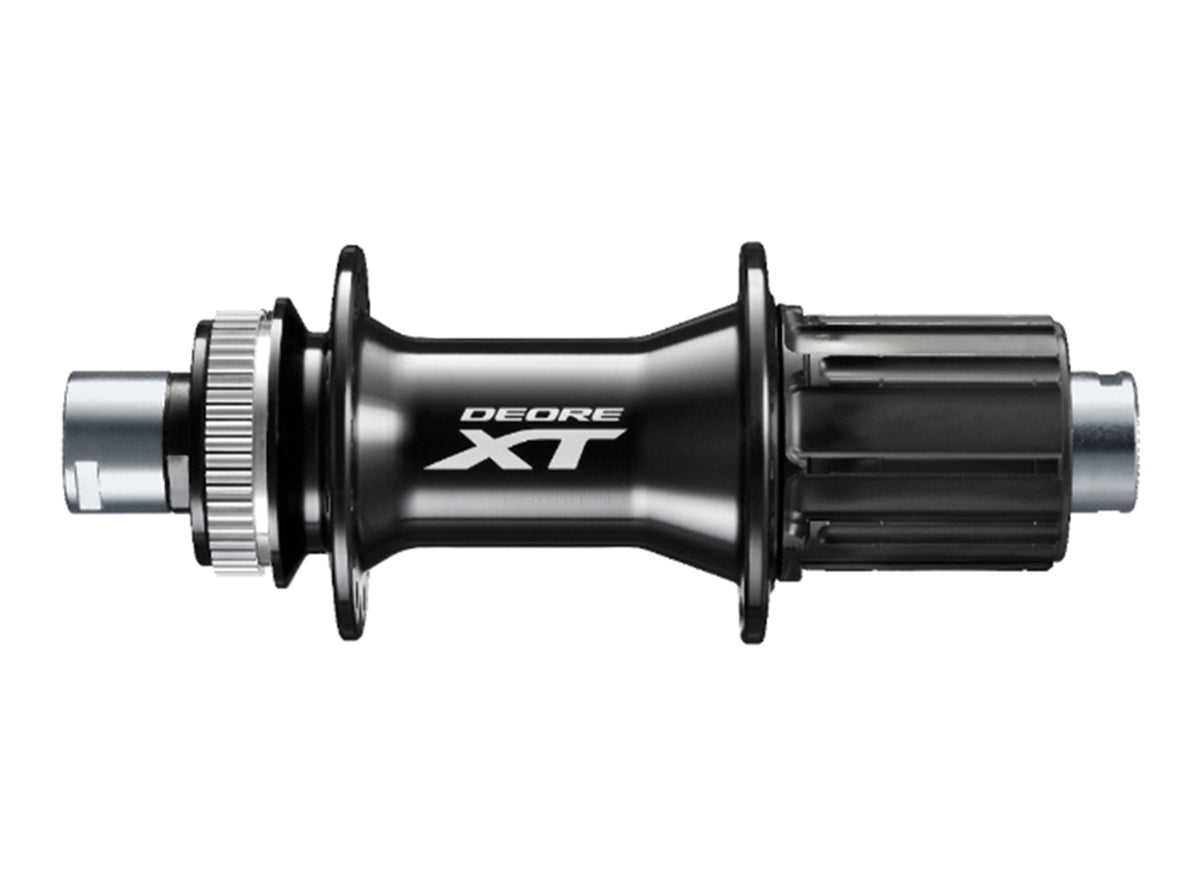

Shimano XT M8010 Rear Disc Hub - 12x142mm

The XT M8010 12x142mm Rear Hub from Shimano is a high performance rear freehub for rim or disc brakes, the XT series is renowned for offering the best performance to value ratio. This hub has a centre lock disc mount for secure braking and hassle free setup, the freehub has super quick engagement with pawl engagement every 10 degrees, giving an almost instant power transfer.

The freehub can be used with 8, 9, 10 or 11-speed cassettes. The bearings are double contact sealed with an internal grease sleeve to make sure the dirt and water doesn't get in, meaning longer lasting bearings that are constantly smooth. The bearings are cup and cone style, for durability, strength and smooth rotation and the cone bearing races have been Borozon treated for precision low-friction rolling capabilities.

Hub Shell: Anodised forged aluminium

Spoke Holes: 32

Axle: Not Included

Bearings: Sealed cup and cone with Borozon treated cone bearing races

Extra Features: Super quick engagement

MODEL NO	FH-M8010
SERIES	SHIMANO DEORE XT M8000 Series
Color	Series color, -
Average weight	359 g
Axle Fixing method	12mm E-THRU
Thru Axle(Length x Inner diameter)_142 x 12 mm	X
Bearing_Cone	CBN
Brake Type	CENTER LOCK disc brake
Flange diameter (mm)	52.8/53.8
Flange distance (mm)	57.4
Internal grease sleeve	X
O.L.D. (mm)	142
Offset (mm)	6.4
P.C.D. (mm)	44/45
QR lever_Color	-, -
Quick engagement	X (more than 36 times/ 360°)
Seal_Freehub body	Contact
Seal_Hub	Labyrinth & Contact
Speeds	8-10 speed MTB 11-speed
Spoke holes_32H	X
