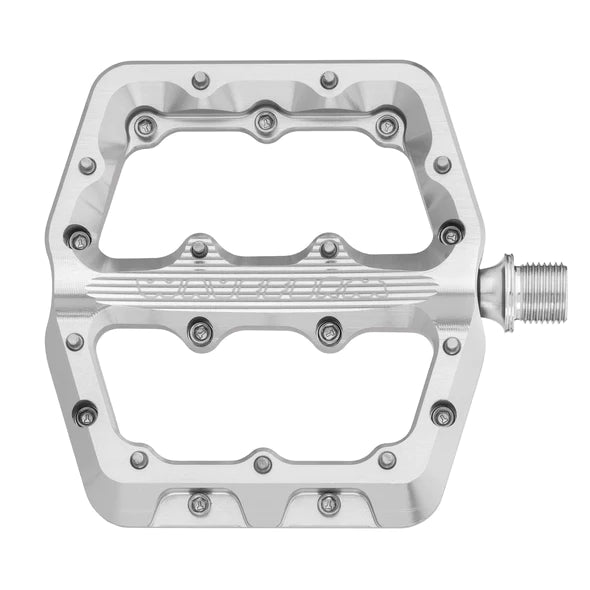

Wolf Tooth Components Waveform Pedal - Small - Silver

Shop all Wolf Tooth Components   |   Shop all Flat Pedals


  • Hassle free
    365 Day Returns
  • Safe and Secure
    for peace of mind
  • Pay by Card, PayPal, Apple Pay & Google Pay

keyboard_arrow_right Description

Wolf Tooth Waveform Aluminum Pedals are designed for all-mountain riding, from XC to downhill.

The pedals come in two sizes, and are proportionally scaled to provide a supportive platform, shaped to match the footprint of your shoe. They have a slim, dual-concave profile that is 14mm thick at the perimeter and just 12.5mm thick in the center, cradling your foot for optimal pedal feel. Each side of the pedal has 11 stainless steel rear-loading pins for loads of traction. The design also features a large, tapered leading edge to deflect pedal strikes on rough terrain. A custom radial seal protects three fully sealed cartridge bearings for low-friction riding in all conditions.

  • Two sizes: Large is 112mm x 106mm, small is 105mm x 99mm
  • Three high-precision, low-friction sealed bearings designed specifically for this pedal, with one igus bushing
  • Custom radial seal to protect internal hardware from water, dirt, and trail debris
  • Eleven stainless steel, rear-loading 4.5mm pins per side
  • Dual Concavity secures your feet firmly in place on the pedals, both front-to-back and side-to-side
  • Tapered leading edge deflects pedal strikes.
  • Available in eight colors

Recommended

  • Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
  • Pins can be removed for desired grip by using a 3mm hex tool.
  • Includes six extra grip pins. More pins are available on the replacement parts page. See installation instructions for recommendations on installing pins.

Compatibility

  • Fits all cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.

Specifications

  • Weight: Large set 384g | Small set 373g
  • Pin Height: 4.5mm
  • Material: Platform: 6061-T6 Aluminum; Axle: 17-4 PH Stainless Steel; Pins: 304 Stainless Steel
  • Made in the USA
